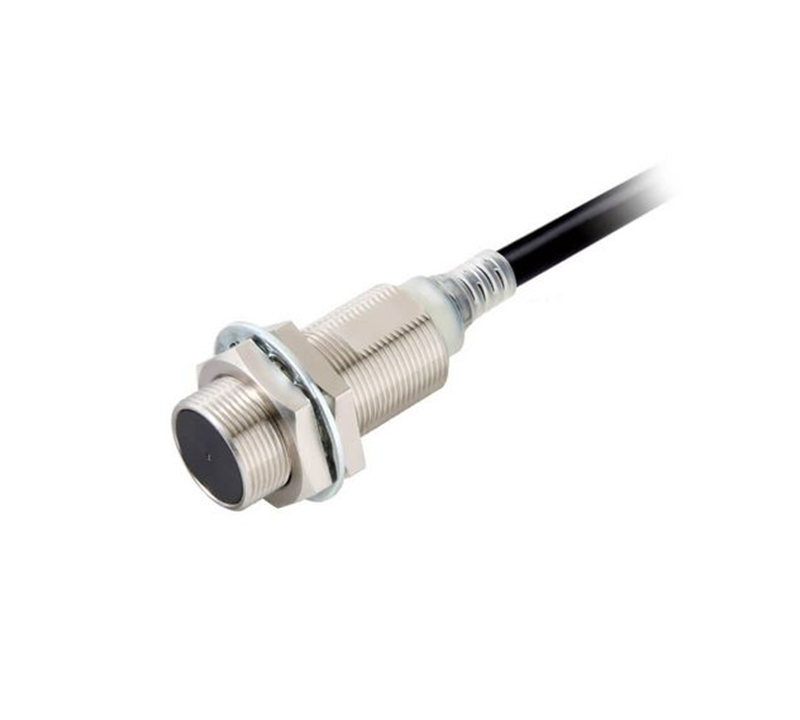

Inductive Sensor Make Contact Omron E2E-X8B3D18 2M OMS
Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 4-wire, PNP NO+NC, IO-Link COM2, 2 m cable
| Size | M18 |
| Mounting type | Quasi-flush |
| Sensing distance | 8 mm |
| Overall length of sensor | 55.3 mm |
| Thread length | 34 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO + NC |
| Connection method | Cable |
| Cable specifications | PVC (oil-resistant) |
| Cable length | 2 m |
| IO-Link function | Ｖ |
| IO-Link baud rate | COM2 (38.4 kbps) |
| Degree of protection (IP) | IP67/IP67G/IP69K |
