    Sensor

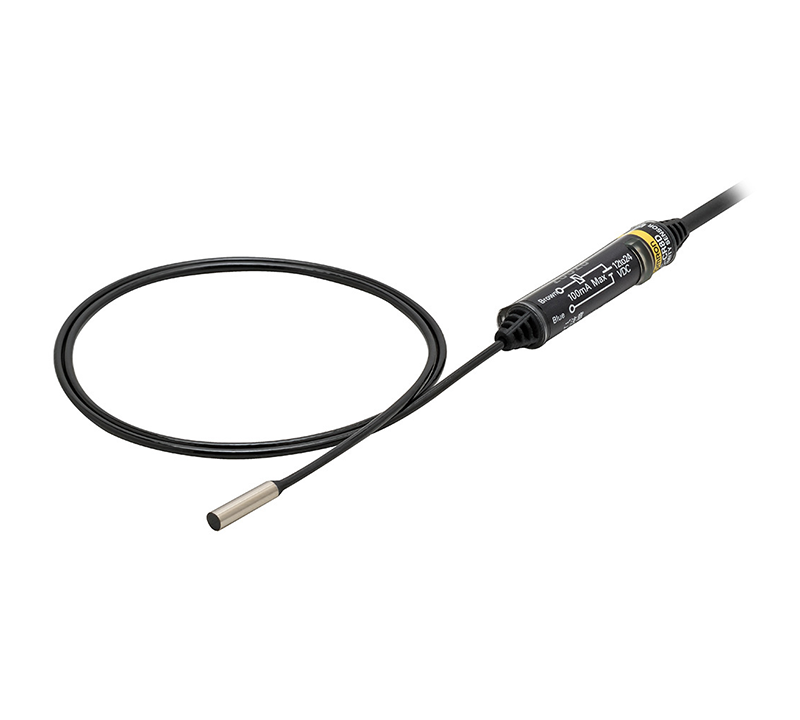

    Inductive Sensor Make Contact Omron E2EC-CR8D1

    Cable Amplifier Proximity Sensor, Shielded, Cylinder type, 3 dia., Sensing distance: 0.8 mm, DC 2-wire, NO, Pre-wired model, 2 m



    Sensing head size 3 dia.
    Type Cylinder type, Shielded
    Power source DC 2-wire models
    Sensing distance 0.8 mm ±15%
    Setting distance 0 to 0.56 mm
    Differential distance 10% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 5 x 5 x 1 mm
    Response frequency 1.5 kHz (Average value)
    Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
    Operating voltage range 10 to 30 VDC
    Leakage current 0.8 mA max.
    Control output (Switching capacity) 5 to 100 mA
    Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m)
    Indicator Operation indicator (red), Operation setting indicator (green)
    Operation mode NO
    Protective circuit Output short-cut protection
    Surge suppressor
    Ambient temperature (Operating) -25 to 70 ℃
    Ambient temperature (Storage) -25 to 70 ℃
    Ambient humidity (Operating) 35 to 95 %
    Ambient humidity (Storage) 35 to 95 %
    Temperature influence ±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃
    Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
    Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC
    Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
    Degree of protection IEC: IP67
    Company standard: Oil-proof (For Sensor Head only)
    Connection method Pre-wired models (2 m)
    Weight Package: Approx. 45 g
    Material Case: Brass
    Sensing surface: ABS
    Accessories Instruction manual, Amplifier Mountig Brackets
