Sensor

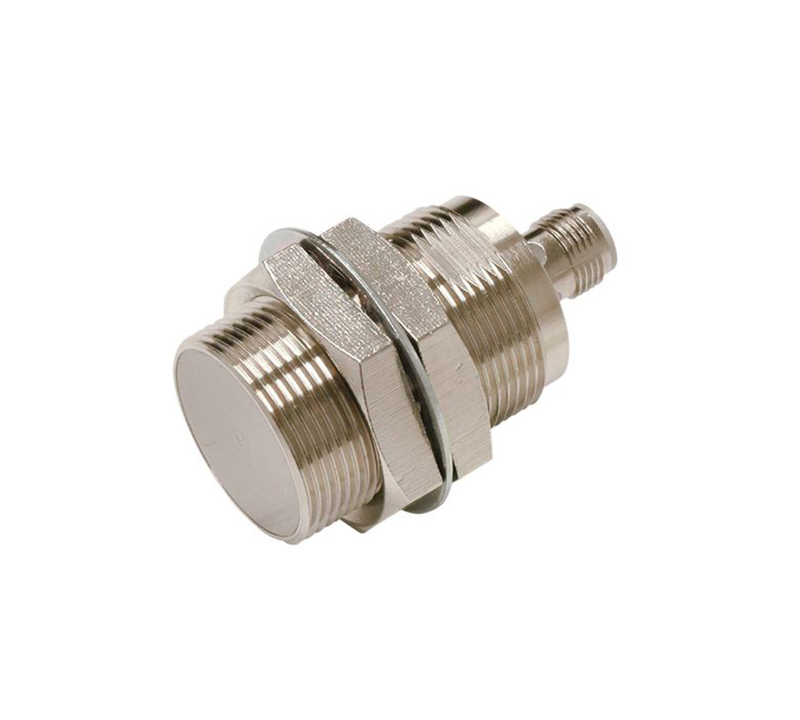

Inductive Sensor Omron E2E-X15B1T30-M1
Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 15 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 15 mm |
| Overall length of sensor | 58 mm |
| Thread length | 39 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | Ｖ |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
