Sensor

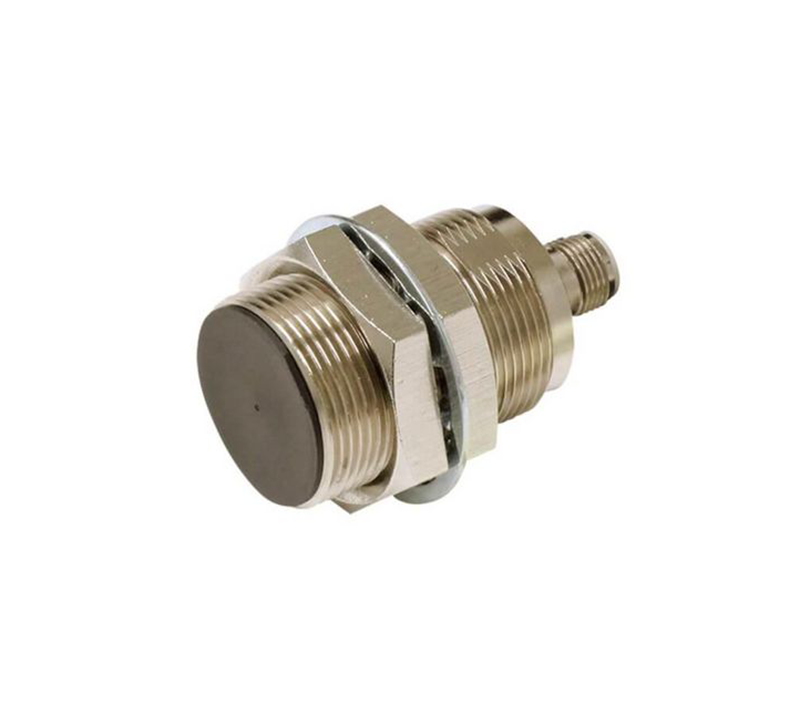

Inductive Sensor Omron E2E-X22B230-M1
Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 22 mm, DC, 3-wire, PNP NC, M12 connector
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 22 mm |
| Overall length of sensor | 58 mm |
| Thread length | 38 mm |
| Material housing | Brass, nickel plated |
| Output type | PNP |
| Operation mode | NC |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | Ｘ |
| Degree of protection (IP) | IP67/IP69K |
