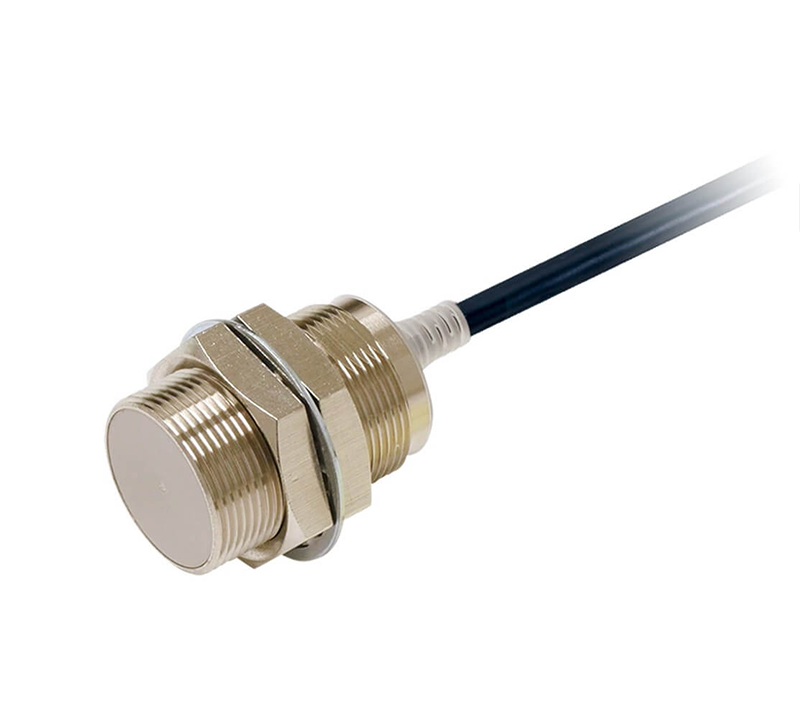

Inductive Sensor PNP Omron E2E-X15B230 2M OMS
Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 15 mm, DC, 3-wire, PNP NC, 2 m cable
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 15 mm |
| Overall length of sensor | 60.3 mm |
| Thread length | 39 mm |
| Material housing | Brass, nickel plated |
| Output type | PNP |
| Operation mode | NC |
| Connection method | Cable |
| Cable specifications | PVC (oil-resistant) |
| Cable length | 2 m |
| IO-Link function | X |
| IO-Link baud rate | N/A |
| Degree of protection (IP) | IP67/IP67G/IP69K |
