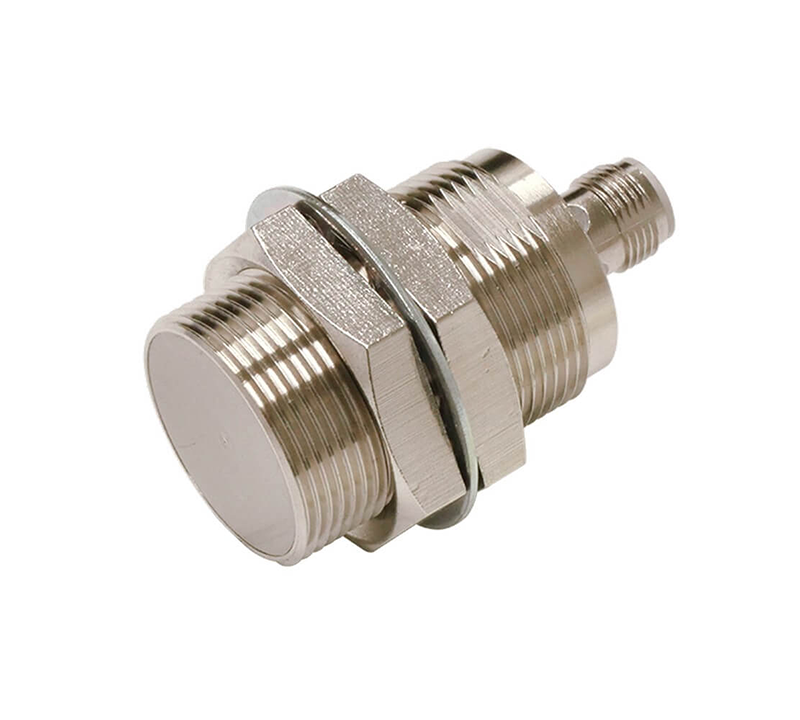

    Inductive Sensor PNP Omron E2E-X15B230-M1

    Proximity sensor, inductive, nickel-brass, short body, M30, shielded, 15 mm, DC, 3-wire, PNP NC, M12 connector


    Size M30
    Mounting type Quasi-flush
    Sensing distance 15 mm
    Overall length of sensor 58 mm
    Thread length 39 mm
    Material housing Brass, nickel plated
    Output type PNP
    Operation mode NC
    Connection method Connector M12
    Cable specifications -
    IO-Link function X
    Degree of protection (IP) IP67/IP69K
