Sensor

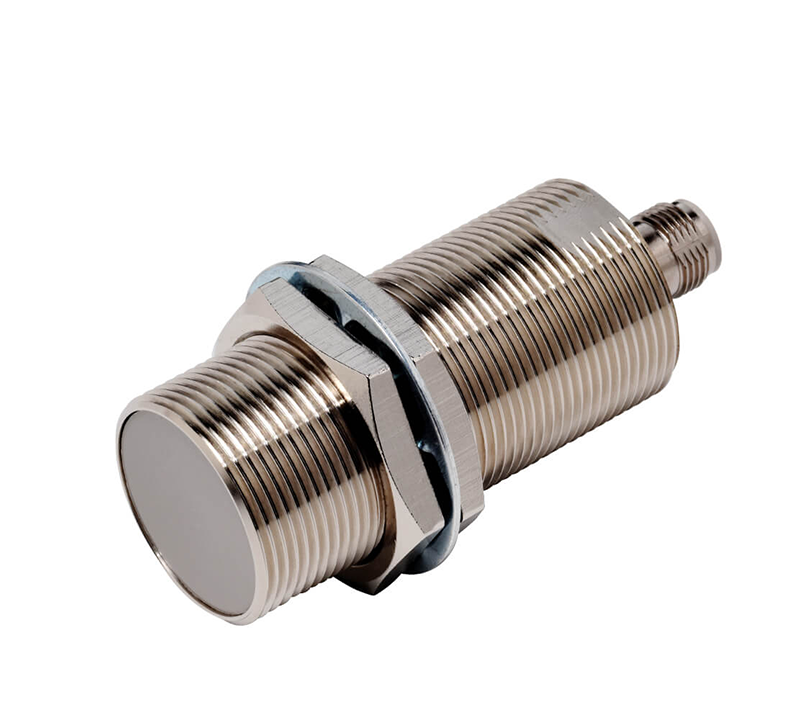

Inductive Sensor PNP Omron E2E-X15B3DL30-M1
Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 15 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector
| Size | M30 |
| Mounting type | Quasi-flush |
| Sensing distance | 15 mm |
| Overall length of sensor | 80 mm |
| Thread length | 65 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO + NC |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | Ｖ |
| IO-Link baud rate | COM2 (38.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
