Sensor

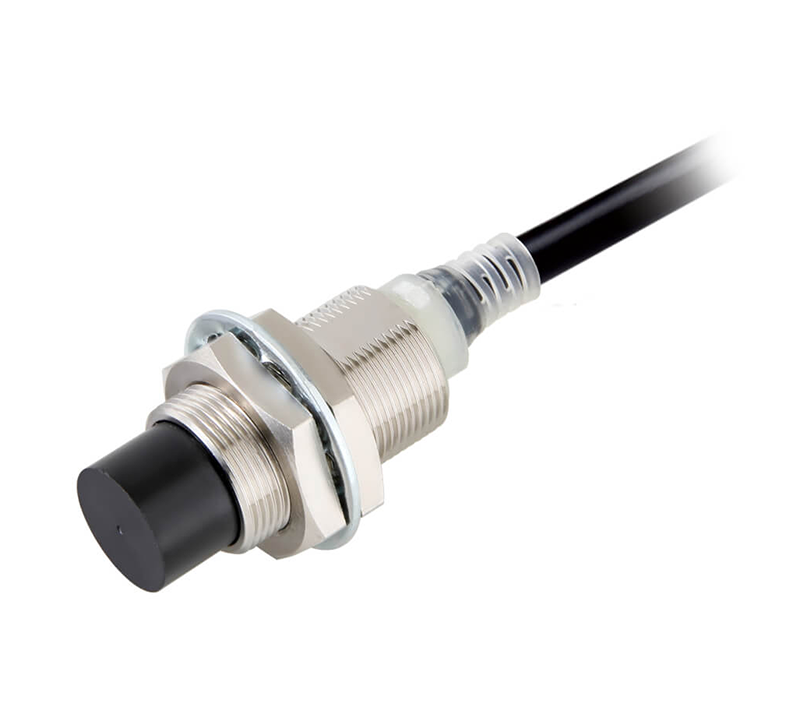

Inductive Sensor PNP Omron E2E-X16MB1T18 5M OMS
Proximity sensor, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, PNP NO, IO-Link COM3, 5 m cable
| Size | M18 |
| Mounting type | Non-flush |
| Sensing distance | 16 mm |
| Overall length of sensor | 55.3 mm |
| Thread length | 28 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Cable |
| Cable specifications | PVC (oil-resistant) |
| Cable length | 5 m |
| IO-Link function | V |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Degree of protection (IP) | IP67/IP67G/IP69K |
