    Sensor

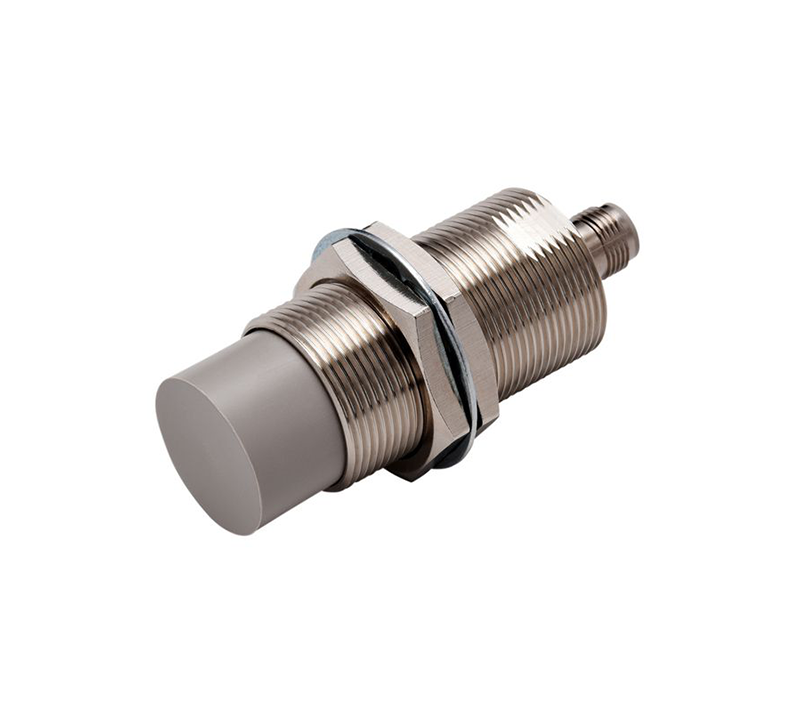

    Inductive Sensor PNP Omron E2E-X3 0MB3DL30 M1 OMS

    Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, 30 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector


    Size M30
    Mounting type Non-flush
    Sensing distance 30 mm
    Overall length of sensor 80 mm
    Thread length 50 mm
    Material housing Brass, nickel plated
    Output type IO-Link, PNP
    Operation mode NO + NC
    Connection method Connector M12
    Cable specifications -
    IO-Link function V
    IO-Link baud rate COM2 (38.4 kbps)
    Degree of protection (IP) IP67/IP69K
