Sensor

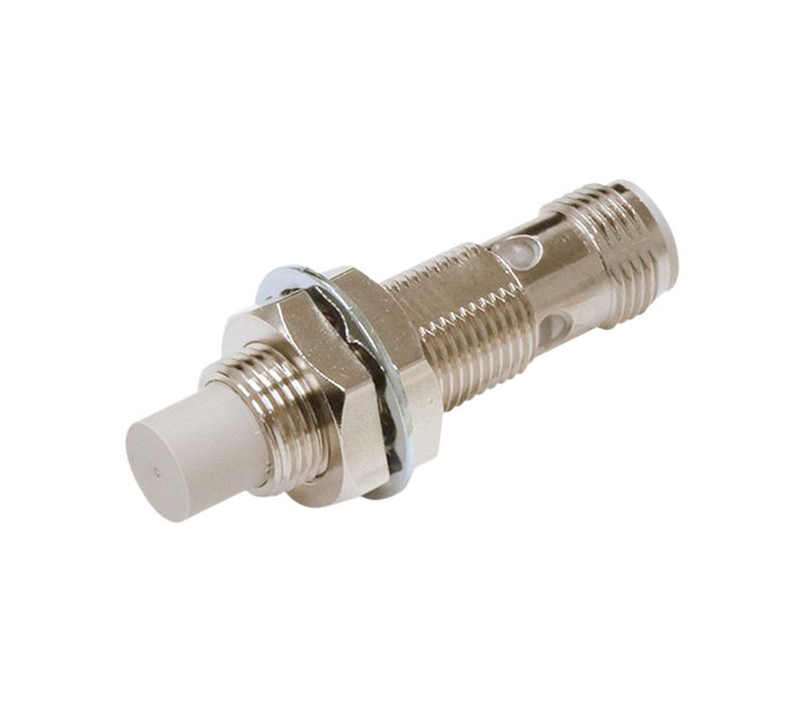

Inductive Sensor PNP Omron E2E-X8MB212-M1
Proximity sensor, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, PNP NC, M12 connector
| Size | M12 |
| Mounting type | Non-flush |
| Sensing distance | 8 mm |
| Overall length of sensor | 48 mm |
| Thread length | 26 mm |
| Material housing | Brass, nickel plated |
| Output type | PNP |
| Operation mode | NC |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | X |
| Degree of protection (IP) | IP67/IP69K |
