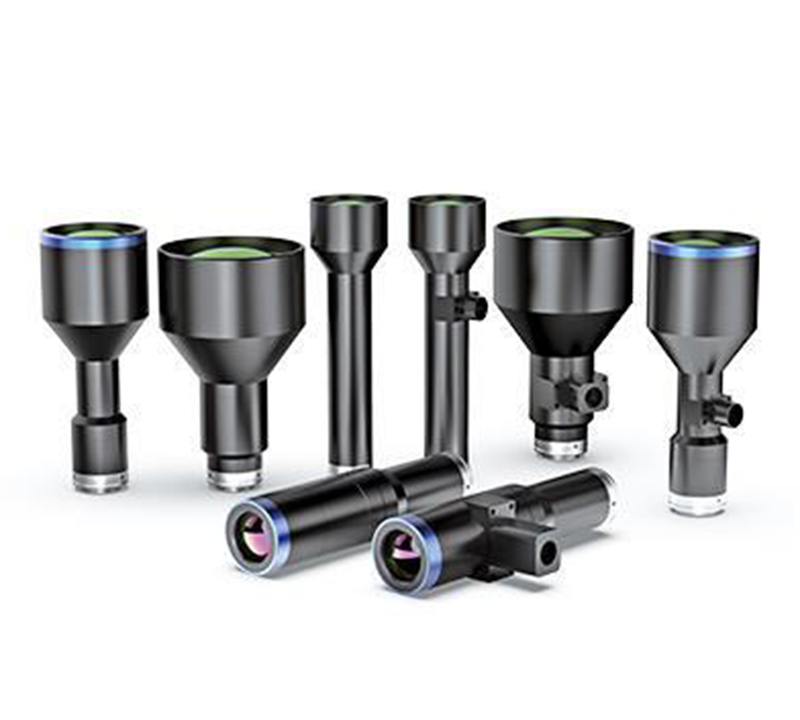

Industrial 10M Series Telecentric Lenses OPT-10M30-65
- Large aperture and high resolution, compatible with cameras up to 1.1" sensor chip size.
- The magnification range of the whole series is wide, multiple magnifications are available from 0.2X to 4X.
- High-contrast, low-distortion design, and optional built-in coaxial lighting specifications.
Specifications
Size
Applications
| Model | OPT-10M30-65 |
|---|---|
| Working Distance(mm) | 65±1 |
| Aperture(F/#) | 9.5 |
| Magnification（X） | 3 |
| Image Circle Ø(mm) | 17.6(1.1") |
| MTF30(lp/mm) | 105 |
| Distortion(%Max) | <0.085% |
| Depth Of Field(mm) | 0.09 |
| Telecentricity | 0.20° |
| Object To Image Distance(mm) | 240.9 |
| Mount | C-Mount |
| Weight(kg) | 0.48 |
| Field Of View∅(mm) | 5.87 |
| Lens Type | Focus |
