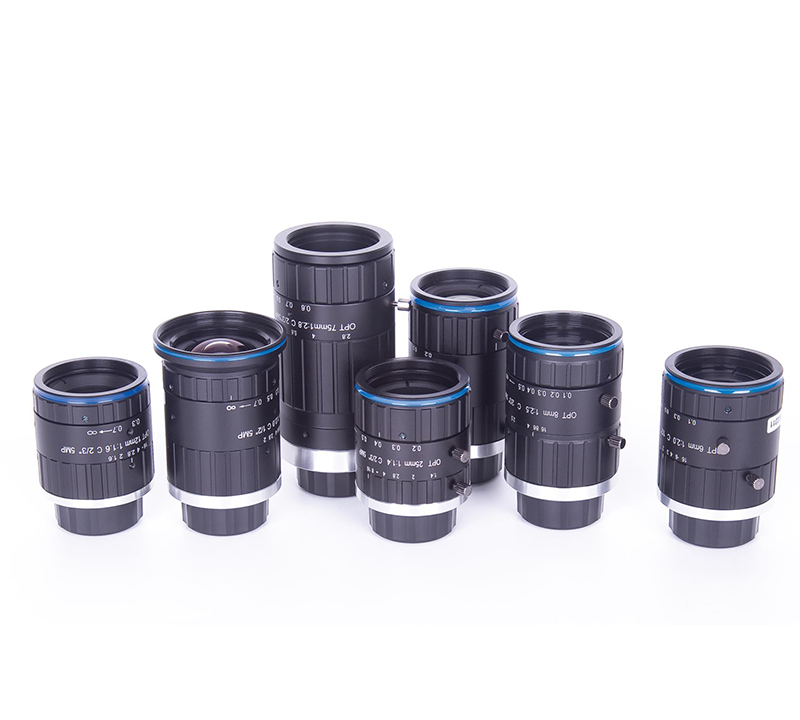

Industrial 5MP Fixed Focal Length Lenses OPT-C0420-5M
◆High resolution
Compatible with 5MP industrial cameras[1] which pixel size ≥ 3.45 μm and max. 2/3" sensor;
resolution up to 140 lp/mm in full FOV
◆Low distortion
Total distortion < 0.7%, min. distortion as low as 0.02%[2]
[1] OPT-C0420-5M and OPT-C0620-5M: Compatible with 3MP cameras of max. 1/2" sensor.
[2] OPT-C0420-5M and OPT-C0620-5M are not included.
Compatible with 5MP industrial cameras[1] which pixel size ≥ 3.45 μm and max. 2/3" sensor;
resolution up to 140 lp/mm in full FOV
◆Low distortion
Total distortion < 0.7%, min. distortion as low as 0.02%[2]
[1] OPT-C0420-5M and OPT-C0620-5M: Compatible with 3MP cameras of max. 1/2" sensor.
[2] OPT-C0420-5M and OPT-C0620-5M are not included.
Specifications
Size
Applications
| Model | OPT-C0420-5M |
|---|---|
| Focal Length(mm) | 4 |
| Back Focal Length(mm) | 6.46 |
| Working Distance(mm) | 100~∞ |
| Aperture(F/#) | F2.0~F16 |
| Sensor Format | 1/3" | 1/2.5" | 1/2" |
| Distortion | <1.7% |
| Max. Field Of View（H*V） | 62.5°×48.6° | 71.4°×56.0° | 76.0°×60.8° |
| Mount | C-Mount |
| Weight(kg) | 0.13 |
| Filter Thread | M39×0.5-6H |
