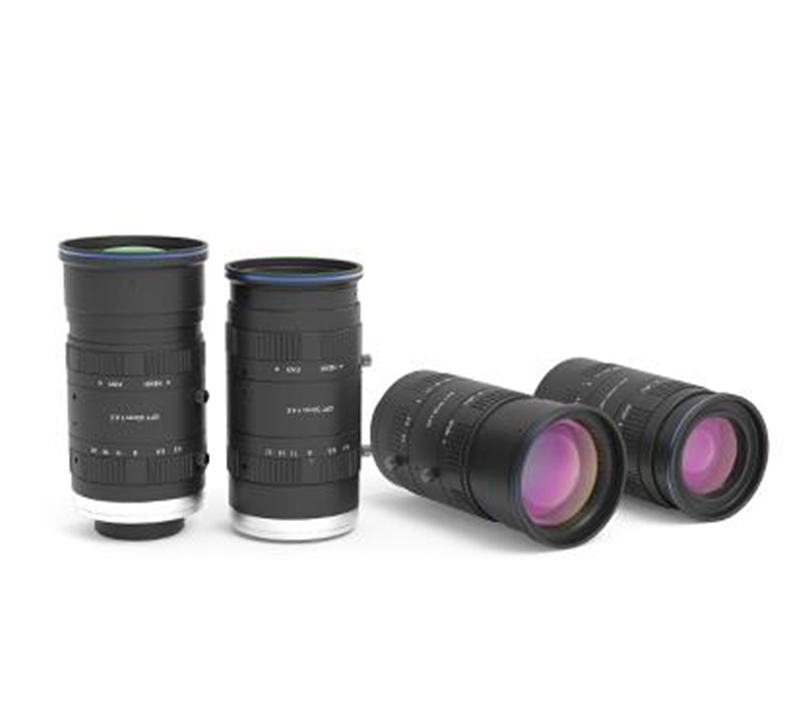

Industrial 78MP Fixed Focal Length Lenses OPT-F5045-78M
◆ High resolution
Compatible with cameras which pixel ≥ 3.2μm and max. full frame (Ø44mm) sensor;
resolution up to 160lp/mm in full FOV.
◆ Broad spectrum
The coating band is 400-1000nm, compatible with visible light and near-infrared band applications.
◆ Floating focus structure design
The floating focus structure design is adopted to effectively ensure good optical performance under a wide working distance range[1]
[1] Equipped with flange adjustment gaskets to maximize the optical performance of the lens used with the camera.
Compatible with cameras which pixel ≥ 3.2μm and max. full frame (Ø44mm) sensor;
resolution up to 160lp/mm in full FOV.
◆ Broad spectrum
The coating band is 400-1000nm, compatible with visible light and near-infrared band applications.
◆ Floating focus structure design
The floating focus structure design is adopted to effectively ensure good optical performance under a wide working distance range[1]
[1] Equipped with flange adjustment gaskets to maximize the optical performance of the lens used with the camera.
Specifications
Size
Applications
| Model | OPT-F5045-78M |
|---|---|
| Focal Length(mm) | 50 |
| Back Focal Length(mm) | 45.73 |
| Working Distance(mm) | 150-∞ |
| Aperture(F/#) | F4.5-F32 |
| Magnification（X） | 0.326X at WD150; 0.166X at WD300; 0.100X at WD500 |
| Image Circle Ø(mm) | 44 |
| Distortion | <0.42% at WD200mm; <0.16% at WD300mm; <0.28% at Wd500mm |
| Flange Focal Distance(mm) | 46.5 |
| Mount | F |
| Weight(kg) | 0.75 |
| Filter Thread | M58 x P0.75 |
