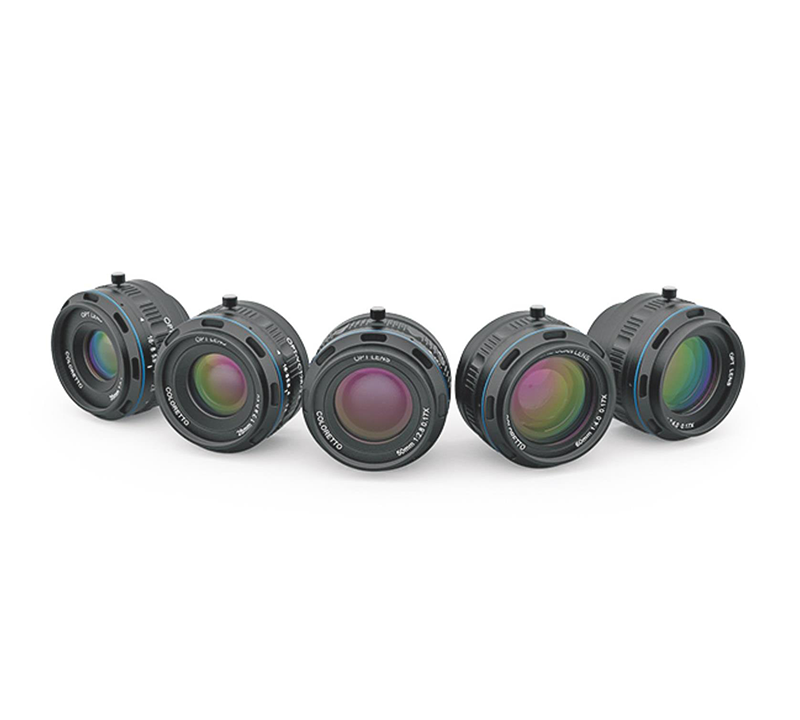

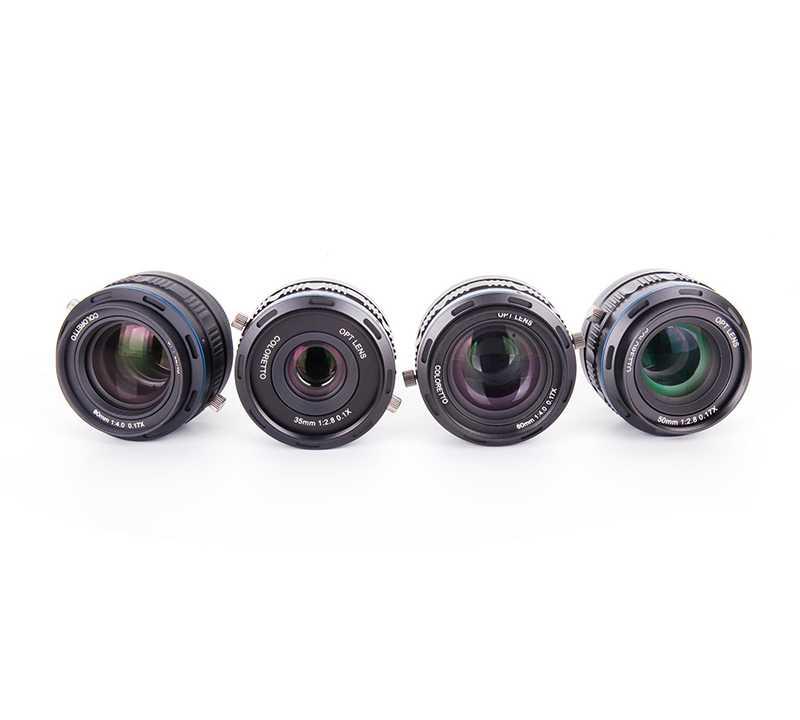

Industrial Coloretto Series Line Scan Lenses OPT-VCT20/4.5-0.10X
- High resolution optical design, compatible with the line scan camera of 7 um pixel
- Relative distortion is below 0.6%
- Broad spectrum range is from 400 to 700 nm and achromatic design
- Suitable for 30 mm image circle and below of line scan camera or area-array camera
Features
Size
Applications
| Model | OPT-VCT20/4.5-0.10X |
|---|---|
| Focal Length(mm) | 21 |
| Working Distance(mm) | 510.7 | 206.2 | 90.7 |
| Aperture(F/#) | F4.5-F16 |
| Magnification（X） | 0.04X | 0.10X | 0.22X |
| Image Circle Ø(mm) | 30 |
| Distortion | 0.20% | 0.60% | 0.95% |
| Flange Focal Distance(mm) | 30.5 | 31.8 | 34.3 |
| Object To Image Distance(mm) | 568.7 | 265.5 | 152.5 |
| Mount | V38 |
| Weight(kg) | 0.14 |
| Filter Thread | M38*P0.5 |
