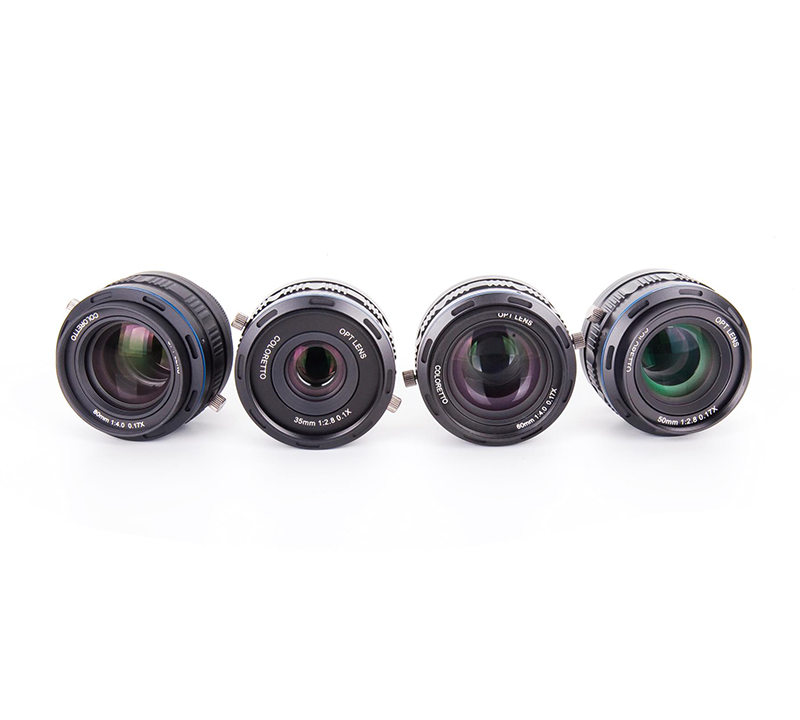

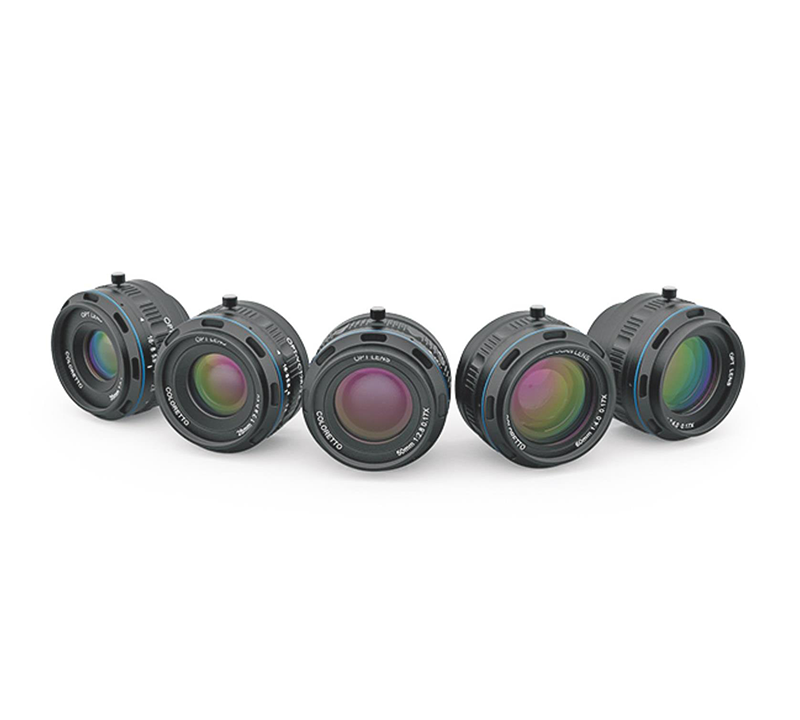

Industrial Coloretto Series Line Scan Lenses OPT-VCT60/5.6-0.17X
- High resolution optical design, compatible with the line scan camera of 7 um pixel
- Relative distortion is below 0.16%
- Broad spectrum range is from 400 to 700 nm and achromatic design
- Suitable for 63 mm image circle and below of line scan camera or area-array camera
Features
Size
Applications
| Model | OPT-VCT60/5.6-0.17X |
|---|---|
| Focal Length(mm) | 60 |
| Working Distance(mm) | 1232.0 | 385.5 | 226.2 |
| Aperture(F/#) | F5.6-F22 |
| Magnification（X） | 0.05X | 0.17X | 0.31X |
| Image Circle Ø(mm) | 63 |
| Distortion | 0.60% | 0.16% | 0.18% |
| Flange Focal Distance(mm) | 49.8 | 56.9 | 65.3 |
| Object To Image Distance(mm) | 1312.2 | 473.9 | 322.9 |
| Mount | V38 |
| Weight(kg) | 0.14 |
| Filter Thread | M38×0.5-6H |
