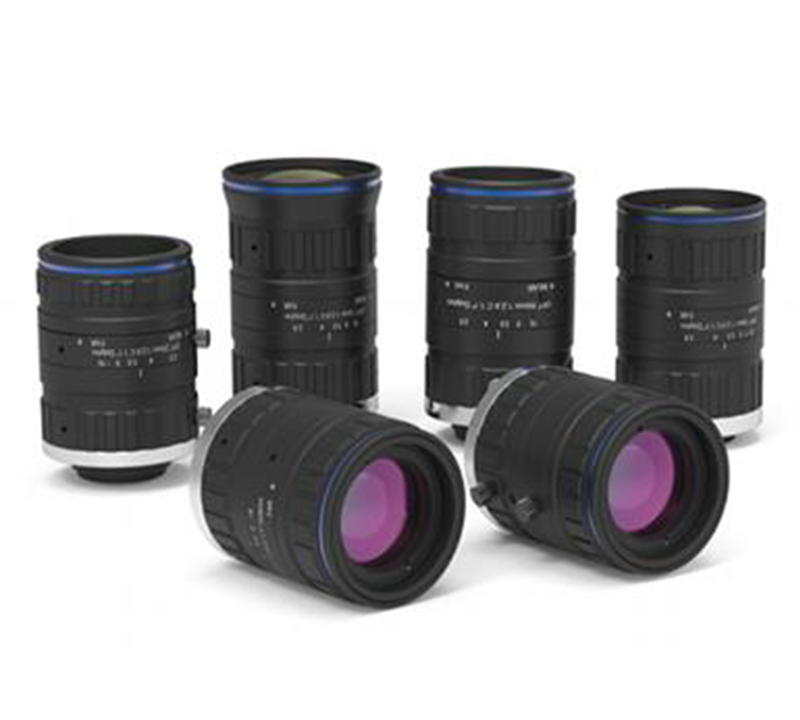

Industrial Dolphin 20MP Series Fixed Focal Lenses OPT-CDP1228
◆High resolution
Compatible with cameras which pixel ≥2.4μm and max.1.1" (Ø17.6mm) sensor; resolution up to 208 lp/mm in full FOV.
◆Wide spectrum range
Compatible with VIS and NIR (400 - 1000nm).
◆Low distortion
The TV distortion of the whole series products is at a low level.
◆High relative illumination
CRA below 5°, this guarantees a high relative illumination across the entire image without vignetting.
Compatible with cameras which pixel ≥2.4μm and max.1.1" (Ø17.6mm) sensor; resolution up to 208 lp/mm in full FOV.
◆Wide spectrum range
Compatible with VIS and NIR (400 - 1000nm).
◆Low distortion
The TV distortion of the whole series products is at a low level.
◆High relative illumination
CRA below 5°, this guarantees a high relative illumination across the entire image without vignetting.
Specifications
Size
Applications
| Model | OPT-CDP1228 |
|---|---|
| Focal Length(mm) | 12 |
| Back Focal Length(mm) | 13.40 at WD100 |11.79 at ∞ |
| Working Distance(mm) | 100-∞ |
| Aperture(F/#) | F2.8-16 |
| Magnification（X） | 0.101X at WD100 |
| Image Circle Ø(mm) | 17.6(1.1〞) |
| TV Distortion(%) | ＜0.85% at WD300 |
| Weight(kg) | 0.21 |
| Filter Thread | M40.5×0.5-6H |
| Image Resolution(μm) | 2.4 |
