Industrial Global Shutter Cameras OPT-CC1-C004-GG1-03
- Adopts brand new design to reduce power consumption.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- SSupports sequencer, contrast ratio, Gamma correction, white balance, etc.
- Supports hard trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C004-GG1-03 |
| Resolution |
720x540 |
| Pixel Size(μ㎡) |
6.9 x 6.9 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX287 |
| Frame Rate(FPS) |
312.9 |
| Sensor Format |
1/2.9” |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
1 μs ~ 10 sec |
| Image Format |
Mono 8/10/12 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed，YUV422_YUYV_Packed RGB 8，BGR8 |
| Gain(dB) |
0 dB ~ 24 dB |
| Dynamic Range(dB) |
73.6 dB |
| Power Supply |
9 VDC to 24 VDC, supports PoE |
| Weight |
Approx. 100 g (0.22 lb.) |
| Power Consumption（W） |
Typ. 2.4 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0),opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

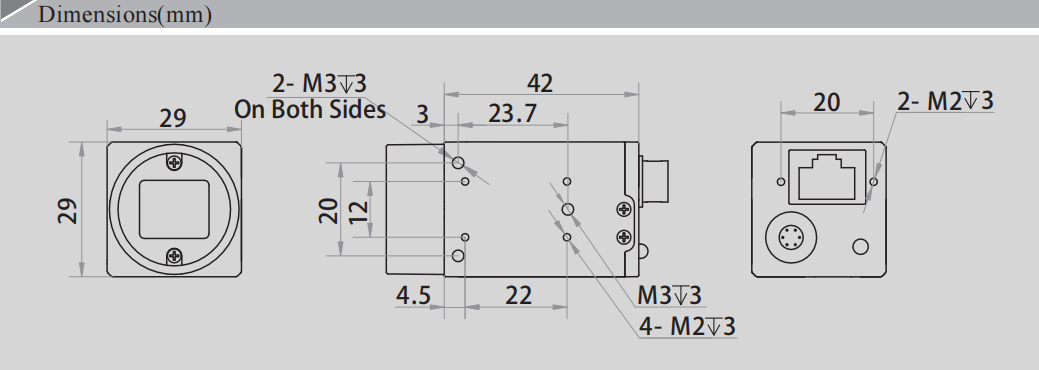

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
