Camera & Optics

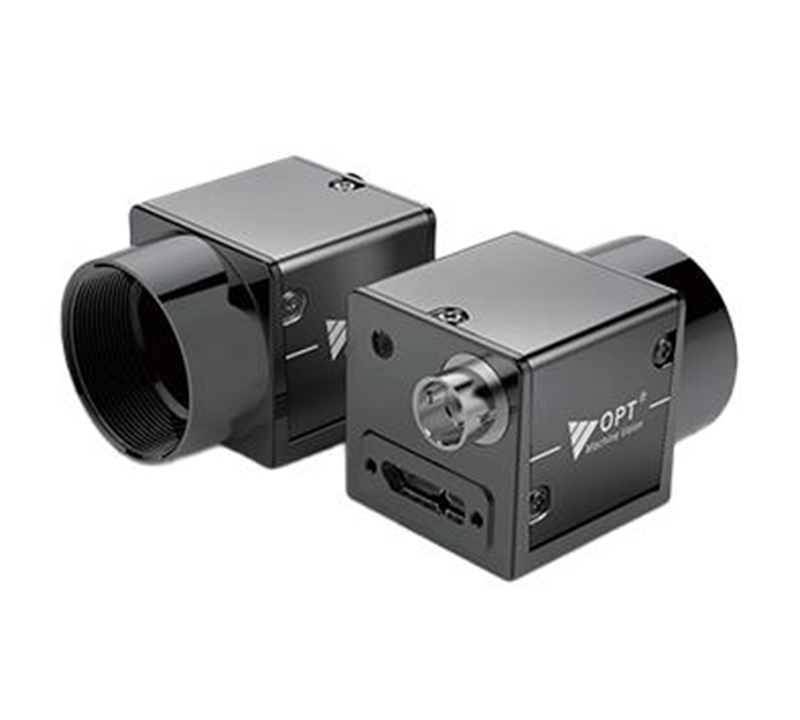

Industrial Global Shutter Cameras OPT-CC1-C016-UG1-01
- Adopts brand new design to reduce power consumption.
- Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C016-UG1-01 |
| Resolution |
1440x1080 |
| Pixel Size(μ㎡) |
3.45 x 3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX273 |
| Frame Rate(FPS) |
249.1 |
| Sensor Format |
1/2.9” |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode: 1 μs to 14 μs；Standard exposure mode: 15 μs to 10 sec |
| Image Format |
Mono 8/10/12Bayer RG 8/10/10Packed/12/12Packed YUV422Packed，YUV422_YUYV_Packed RGB 8，BGR 8 |
| Gain(dB) |
0 dB ~ 17 dB |
| Dynamic Range(dB) |
71.1 dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 80 g (0.18 lb.) |
| Power Consumption（W） |
Typ. 3.3 W@5 VDC (USB3.0 provides power supply) |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122°F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

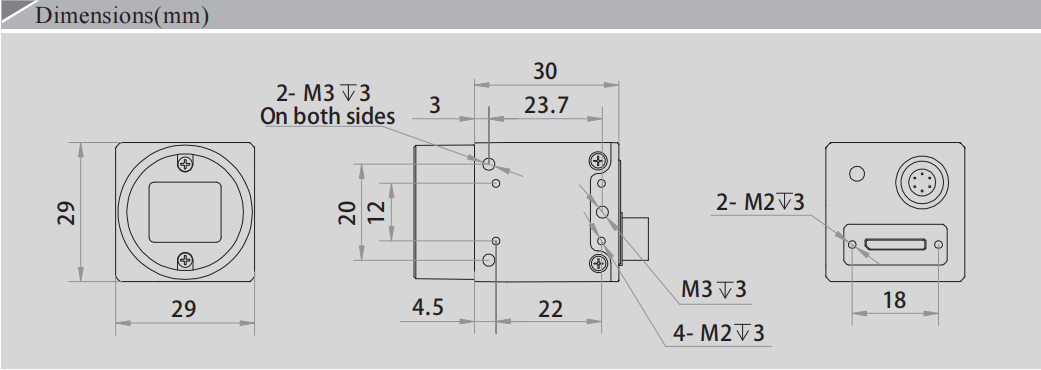

| Dimensions |
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
