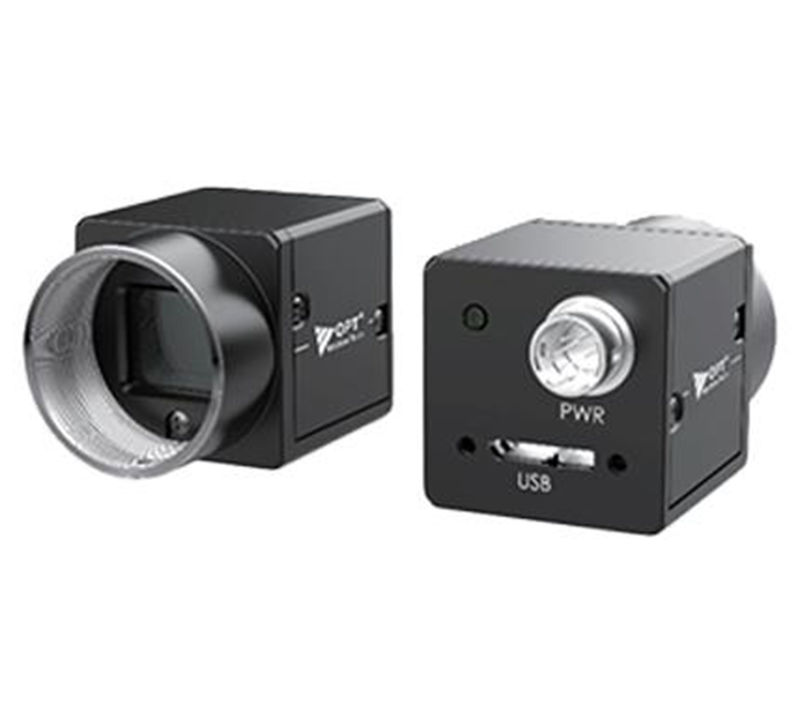

Industrial Global Shutter Cameras OPT-CC1-C020-UG1-02
- Adopts brand new design to reduce power consumption.
- Supports sequencer, passive transmission, etc.
- Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
- Supports hard trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C020-UG1-02 |
| Resolution |
1624x1240 |
| Pixel Size(μ㎡) |
4.5 x 4.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX430 |
| Frame Rate(FPS) |
90 |
| Sensor Format |
1/1.7” |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode: 1 μs to 5 μs;Standard exposure mode: 6 μs to 10 sec |
| Image Format |
Mono 8/10/12,Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8 |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
71.5 dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 80 g (0.18 lb.) |
| Power Consumption（W） |
Typ. 2.4 W@5 VDC (USB3.0 provides power supply) |
| Temperature |
Working temperature: 0 °C to 50 °C (32°F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

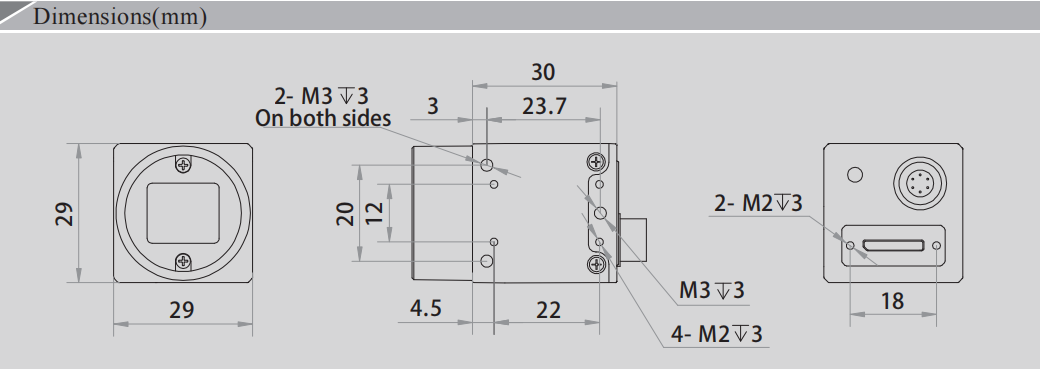

| Dimensions |
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
