Camera & Optics

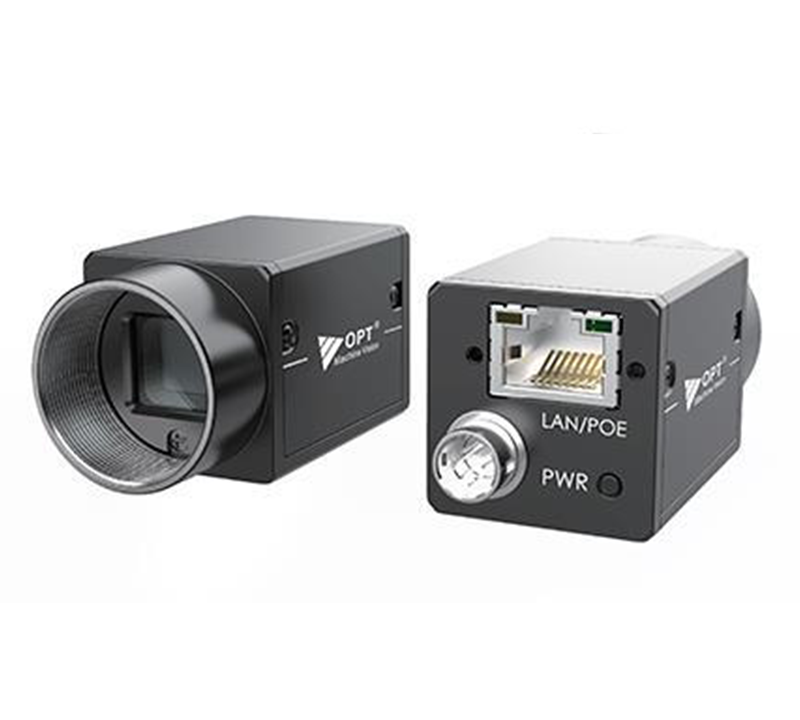

Industrial Global Shutter Cameras OPT-CC1-C050-GG0-02
- Adopts brand new design to reduce power consumption.
- Supports contrast ratio function to adjust image clarity.
- Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C050-GG0-02 |
| Resolution |
2592x2048 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
XGS5000 |
| Frame Rate(FPS) |
22.7 |
| Sensor Format |
2/3" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode∶25 μs to 99 μs；Standard exposure mode∶ 100 μs to 10 sec |
| Image Format |
Mono 8/10/12,Bayer RG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8 |
| Gain(dB) |
0 dB to 18 dB |
| Dynamic Range(dB) |
66 dB |
| Power Supply |
9 VDC to 24 VDC, supports PoE |
| Weight |
Approx. 100 g (0.22 lb.) |
| Power Consumption（W） |
Typ. 2.7 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |

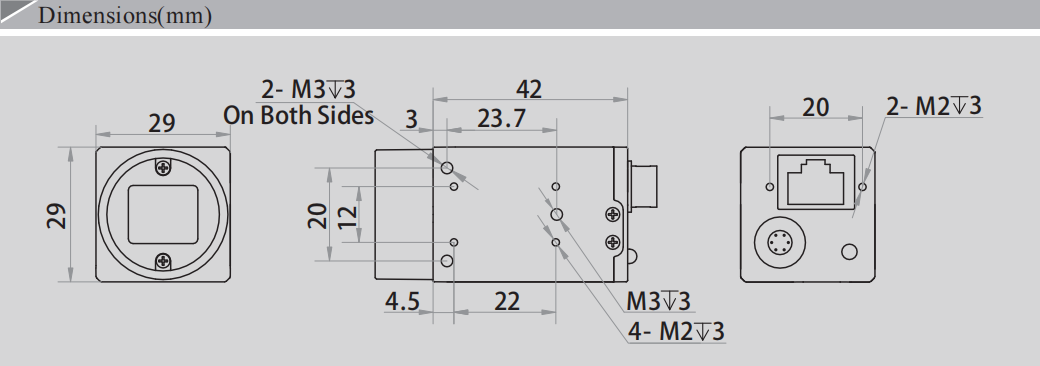

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
