Industrial Global Shutter Cameras OPT-CC1-C050-GG3-01
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C050-GG3-01 |
| Resolution |
2600x2160 |
| Pixel Size(μ㎡) |
2.5 x 2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX2505 |
| Frame Rate(FPS) |
21 |
| Sensor Format |
1/2 ” |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
3 μs to 10 sec |
| Image Format |
Bayer BG 8/10/10Packed/12/12Packed |
| Gain(dB) |
0 dB to 12 dB |
| Dynamic Range(dB) |
63.8 dB |
| Power Supply |
9 VDC to 24 VDC |
| Weight |
Approx. 117 g (0.3 lb.) |
| Power Consumption（W） |
Typ. 2.3 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |

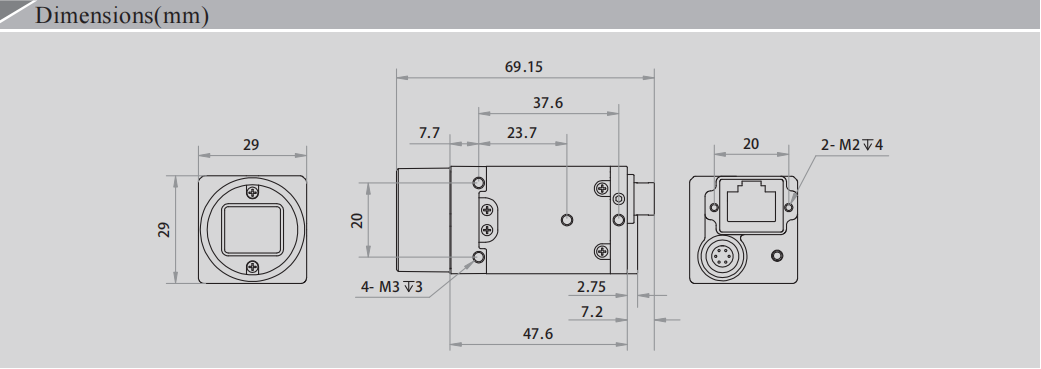

| Dimensions |
29 mm × 29 mm × 47.6 mm (1.1" × 1.1" × 1.9") |
| Mono/Color |
C |
