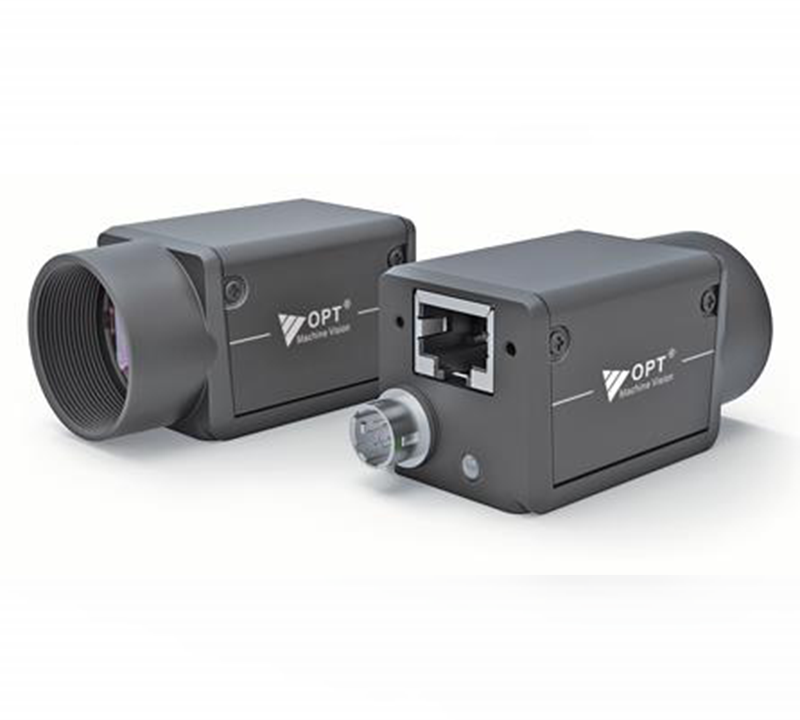

Industrial Global Shutter Cameras OPT-CC1-M013-GG5-04
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc..
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard
Features
| Model |
OPT-CC1-M013-GG5-04 |
| Resolution |
1280x1024 |
| Pixel Size(μ㎡) |
4.0 x 4.0 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
SS |
| Frame Rate(FPS) |
89.9 |
| Sensor Format |
1/2.7” |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
31 μs to 1 sec |
| Image Format |
Mono 8/10/10Packed/12/12Packed |
| Gain(dB) |
0 dB to 20 dB |
| Dynamic Range(dB) |
54.5 dB |
| Power Supply |
9 VDC to 24 VDC |
| Weight |
Approx. 100 g (0.2 lb.) |
| Power Consumption（W） |
Typ. 1.9 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

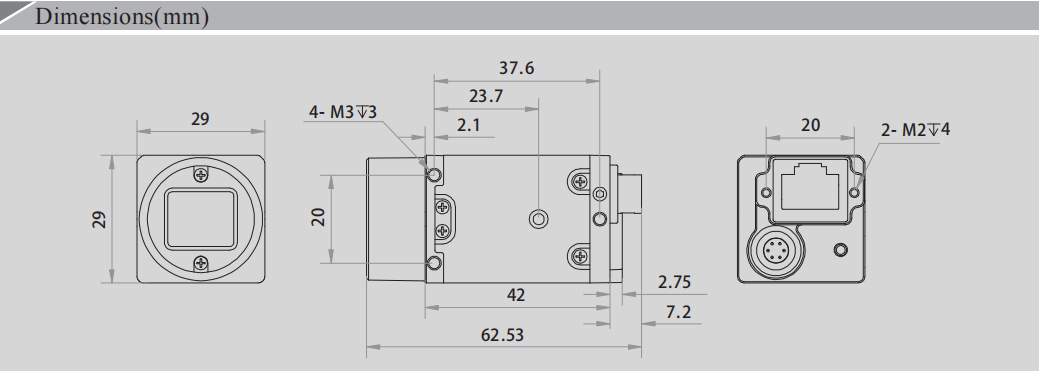

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Mono/Color |
M |
