Industrial Global Shutter Cameras OPT-CC1-M013-UG5-02
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-M013-UG5-02 |
| Resolution |
1280x1024 |
| Pixel Size(μ㎡) |
4.8 x 4.8 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Frame Rate(FPS) |
201.4 |
| Sensor Format |
1/2” |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
5 μs ~ 10 sec |
| Image Format |
Mono 8/10/10Packed/12/12Packed |
| Gain(dB) |
0 dB ~ 16 dB |
| Dynamic Range(dB) |
53 dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 76 g (0.2 lb.) |
| Power Consumption（W） |
Typ. 1.79 W@5 VDC (USB3.0 provides power supply) |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |

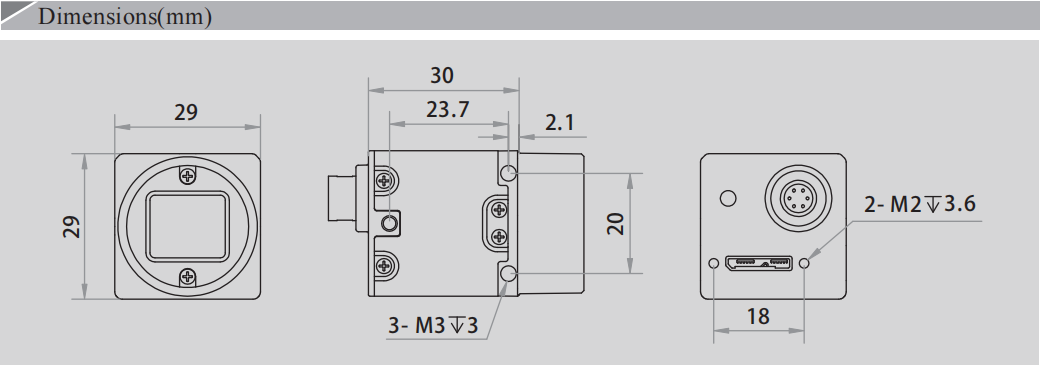

| Dimensions |
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
M |
