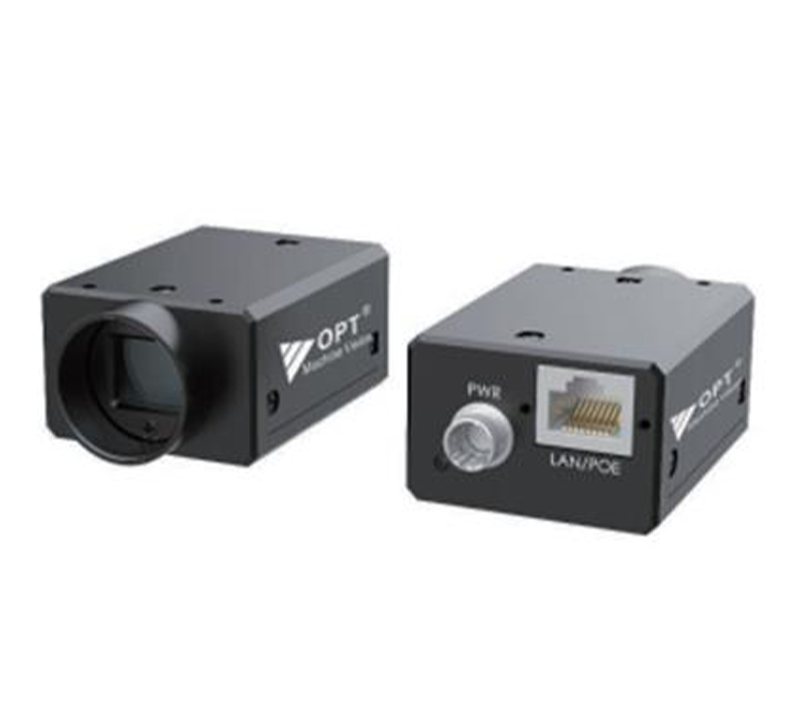

Industrial Global Shutter Cameras OPT-CC1-M017-GG1-01
- Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
- Supports 2D noise reduction function.
- Supports high sensitivity mode and high full well mode.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCamStandard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CC1-M017-GG1-01 |
| Resolution |
1608×1104 |
| Pixel Size(μ㎡) |
9x9 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX432 |
| Frame Rate(FPS) |
68.5 |
| Sensor Format |
1.1" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode: 1 μs to 5 μs;Standard exposure mode: 6 μs to 10 sec |
| Image Format |
Mono 8/10/10Packed/12/12Packed |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
72.44 dB |
| Power Supply |
12 VDC, supports PoE |
| Weight |
Approx. 100g (0.22 lb.) |
| Power Consumption（W） |
4.2 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |

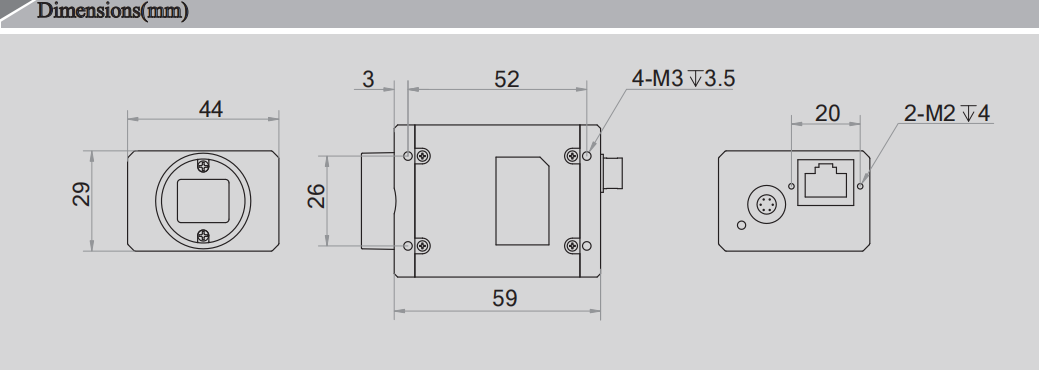

| Dimensions |
29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Mono/Color |
M |
