Industrial Global Shutter Cameras OPT-CC1-M020-GG0-01
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;
- Support Software Trigger/Hardware Trigger/Free Run Mode;
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel
- Correction/TargetBrightness/Contrast etc.;
- Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.;
- Support multiple image data formats output/ROI/Mirror, etc.;
- Conform to GigE Vision V2.0 protocol and GenICam standard;
- Support PoE power supply, DC 9V~24V wide voltage power supply;
- Conform to CE, FCC, RoHS;
Features
| Model |
OPT-CC1-M020-GG0-01 |
| Resolution |
1920x1200 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
XGS2000 |
| Frame Rate(FPS) |
52 |
| Sensor Format |
1/2.2" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
15μs~10s |
| Image Format |
Mono8/10/10Packed/Mono12/Mono12Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
68 dB |
| Power Supply |
PoE/ DC 9V~24V power supply via Hirose interface |
| Weight |
88 g |
| Power Consumption（W） |
12V≈3.24W |
| Temperature |
Storage Temperature: - 30℃~80℃；Operating Temperature: 0℃~50℃ |
| GPIO |
1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output |

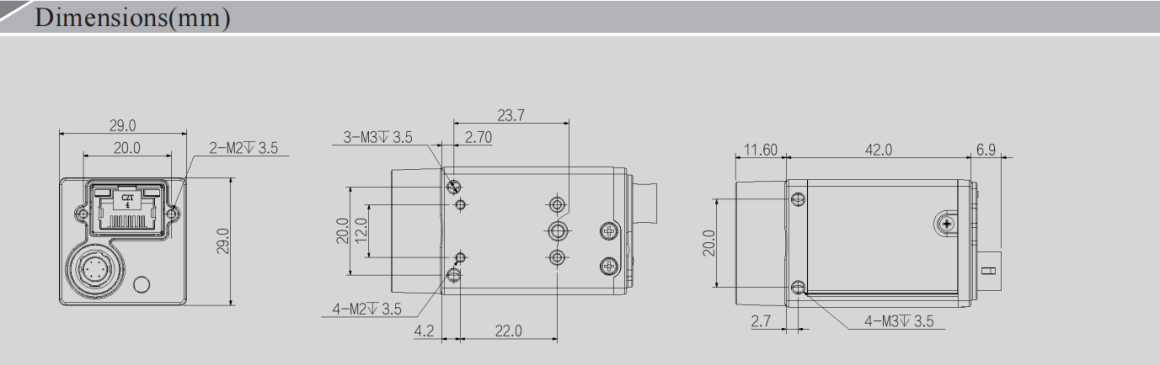

| Dimensions |
29 mm×29 mm×42 mm(not including lens mount and rear case connector) |
| Mono/Color |
M |
