Industrial Global Shutter Cameras OPT-CC130-GM-0402
- Gigabit Ethemet interface, providing 1Gbps bandwidth, the maximum transmission distance can reach 100m.
- Support software trigger/hardware trigger/mixed software and hardware trigger/free running and other modes.
- Support a variety of image data format output, ROI, binning, mirror, etc.
- Comply with GigE Vision V2.0 protocol and GenICam standard.
- Support PoE power supply，DC9-24V wide voltage power supply.
- Comply with CE,FCC,RoHS certification.
Features
| Model |
OPT-CC130-GM-0402 |
| Resolution |
1280×1024 |
| Pixel Size(μ㎡) |
4.0x4.0 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
SS |
| Frame Rate(FPS) |
85 |
| Sensor Format |
1/2.7" |
| Interface |
GigE PoE |
| Lens Mount |
C-Mount |
| Exposure Time |
10μs-1s |
| Image Format |
Mono8， BayerRG8/10/10Packed，BayerGB8/ 10/10Packed，YUV422Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
60dB |
| Power Supply |
PoE power supply /DC power supply through Hirose interface, voltage range 9V~24V |
| Weight |
88g |
| Power Consumption（W） |
12V≈3.4W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

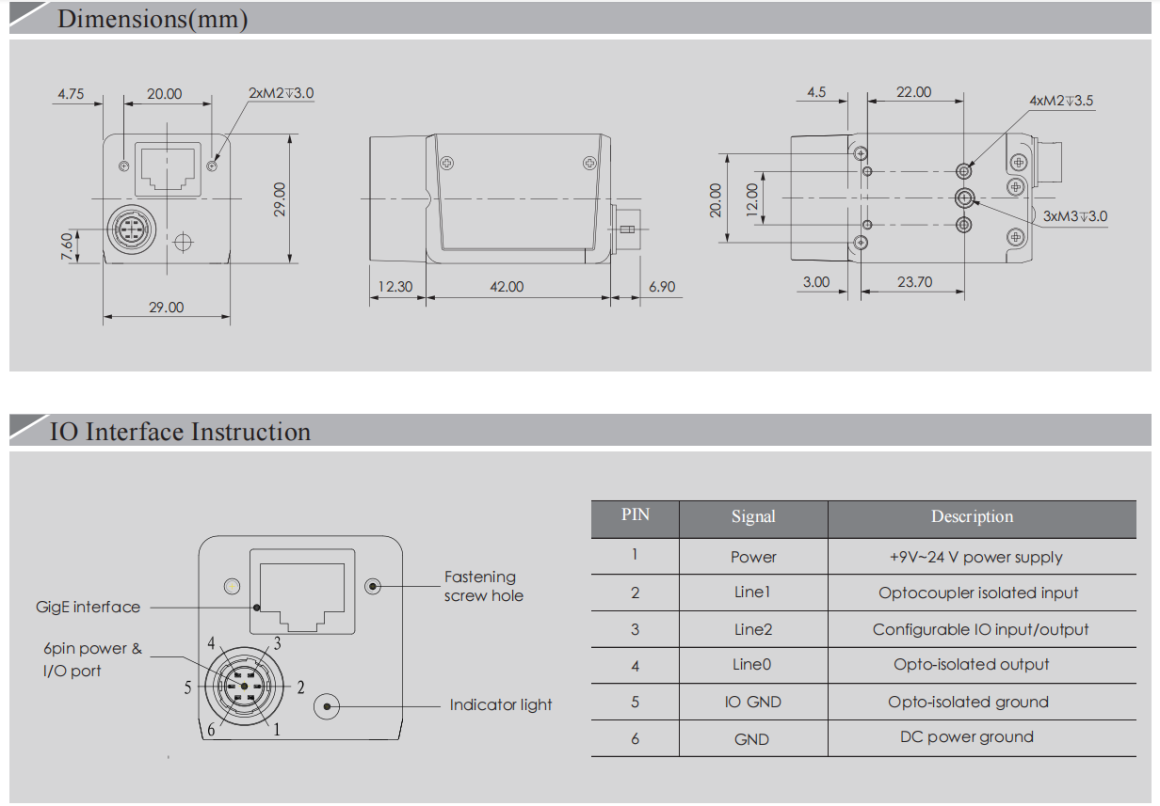

| Dimensions |
29mm×29mm×42mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
C |
