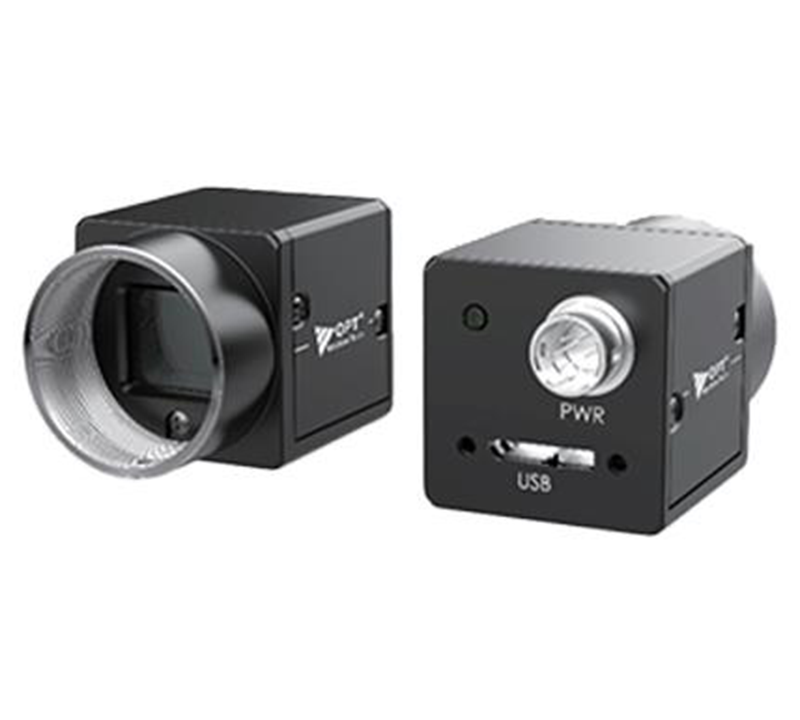

Industrial Global Shutter Cameras OPT-CC200-UM-16
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CC200-UM-16 |
| Resolution |
1624×1240 |
| Pixel Size(μ㎡) |
4.5x4.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX430 |
| Frame Rate(FPS) |
89.1 |
| Sensor Format |
1/1.7" |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
1 μs ~ 10 sec |
| Image Format |
Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8，BGR 8 |
| Gain(dB) |
0 dB ~ 24dB |
| Dynamic Range(dB) |
75.4dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 80g (0.2 lb.) |
| Power Consumption（W） |
Typ. 3.9 W@5 VDC (USB3.0 provides power supply) |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

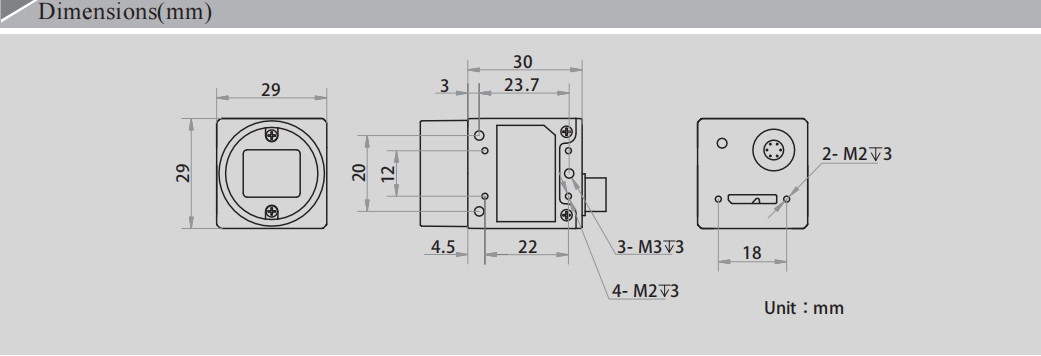

| Dimensions |
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
