Industrial Global Shutter Cameras OPT-CC40-GM-04
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel
- Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Mirror, etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard.
- Support PoE power supply, DC 9V~24V wide voltage power supply.
| Model |
OPT-CC40-GM-04 |
| Resolution |
720×540 |
| Pixel Size(μ㎡) |
6.9x6.9 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX287 |
| Frame Rate(FPS) |
300 |
| Sensor Format |
1/2.9" |
| Interface |
GigE PoE |
| Lens Mount |
C-Mount |
| Exposure Time |
20μs-1s |
| Image Format |
Mono8,BayerRG8/10/10Packed/12/ 12Packed，BayerGB8/10/10Packed/12/ 12Packed，YUV422Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
＞70dB |
| Power Supply |
PoE/ DC 9V~24V power supply via Hirose interface |
| Weight |
88g |
| Power Consumption（W） |
12V≈4.0W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output |

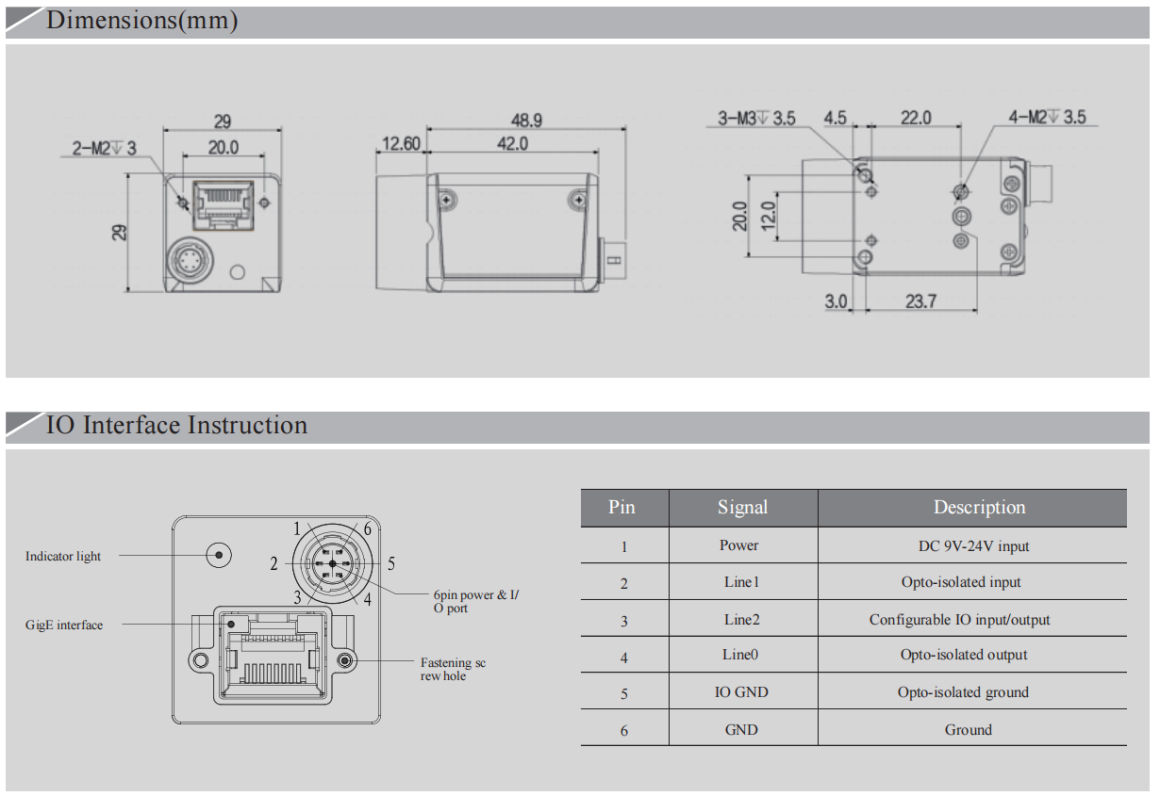

| Dimensions |
29mm×29mm×42mm |
| Conformity |
GigE Vision V2.0 and GenlCam |
| Mono/Color |
C |
