Camera & Optics
Industrial Global Shutter Cameras OPT-CC500-UM-0402
- USB3.0 imterface,5Gbps theoretical trasfer bandwith,power supply via USB interface;
- Support Software Trigger/Hardware Trigger/Software / Hardware Hybrid Trigger/Free Run Mode;
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc;
- Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.
Features
| Model |
OPT-CC500-UM-0402 |
| Resolution |
2448×2048 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX250 |
| Frame Rate(FPS) |
75 |
| Sensor Format |
2/3" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
21μs~1s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
＞70dB |
| Power Supply |
power supply via USB interface/ DC 9V~24V power supply via Hirose interface |
| Weight |
60g |
| Power Consumption（W） |
≈4.2W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

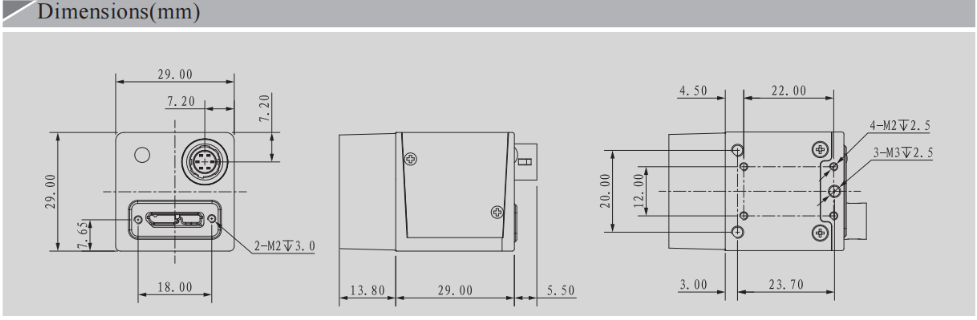

| Dimensions |
29mm×29mm×29mm(not including lens mount and rear case connector) |
| Mono/Color |
C |
