Industrial Global Shutter Cameras OPT-CM120-GM-04
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Binning/Mirror,etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard.
- DC 9V~24V wide voltage power supply.
Features
| Model |
OPT-CM120-GM-04 |
| Resolution |
1280×960 |
| Pixel Size(μ㎡) |
3.75x3.75 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
AR0135 |
| Frame Rate(FPS) |
54 |
| Sensor Format |
1/3" |
| Interface |
GigE |
| Lens Mount |
C-Mount |
| Exposure Time |
18.7μs~1s |
| Image Format |
Mono8/10/10packed/12/12Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
71.1dB |
| Power Supply |
DC 9V~24V power supply via Hirose interface |
| Weight |
60g |
| Power Consumption（W） |
12V≈2.8W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

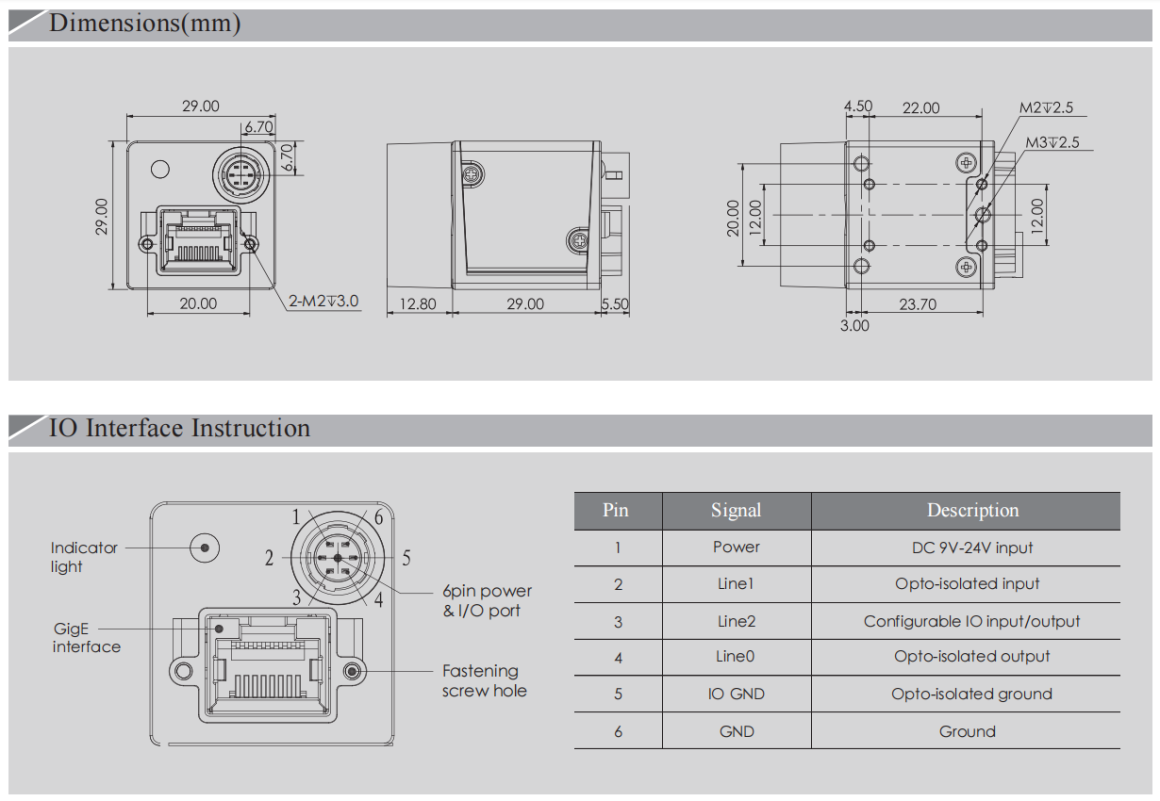

| Dimensions |
29mm×29mm×29mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
M |
