Camera & Optics

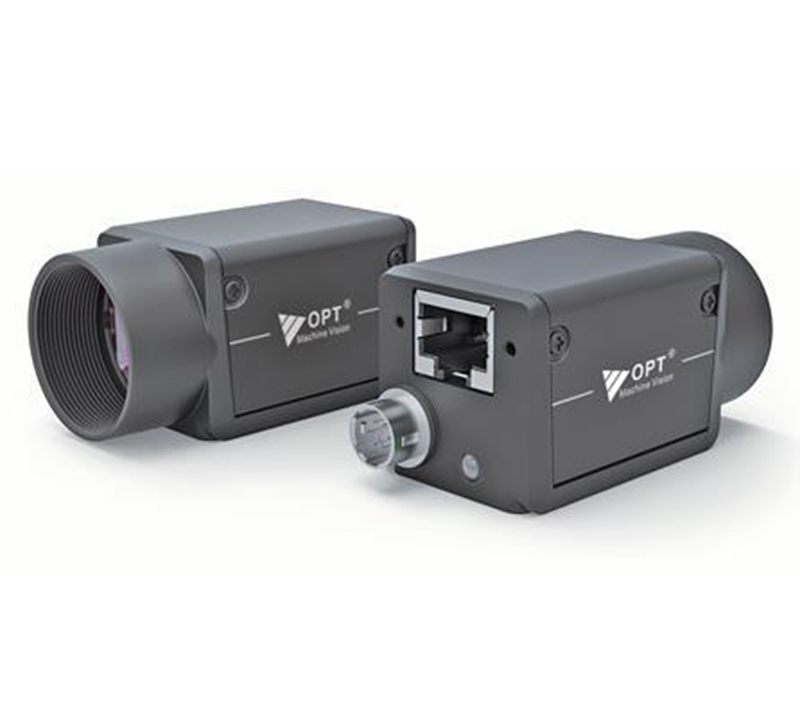

Industrial Global Shutter Cameras OPT-CM130-GH-04
- 1Gbps Ethernet interface , max 100m transmission.
- Support multiple image data formats.
- Conform to CE,FCC,RoHS certifications.
- Software triger/Hardware trigger/Free run mode.
- Compatible with GigE Vision V2.0 protocol and GenlCam standard.
| Model |
OPT-CM130-GH-04 |
| Resolution |
1280×960 |
| Pixel Size(μ㎡) |
3.75x3.75 |
| Sensor Type |
CCD |
| Shutter |
Global |
| Sensor |
RJ33J4CA0DT |
| Frame Rate(FPS) |
30 |
| Sensor Format |
1/3" |
| Interface |
GigE PoE |
| Lens Mount |
C-Mount |
| Exposure Time |
1μs~1s |
| Image Format |
Mono8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
63dB |
| Power Supply |
POE/DC power supply by Hirose connector,with voltage range from 9V to 24V |
| Weight |
88g |
| Power Consumption（W） |
12V≈3.2W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

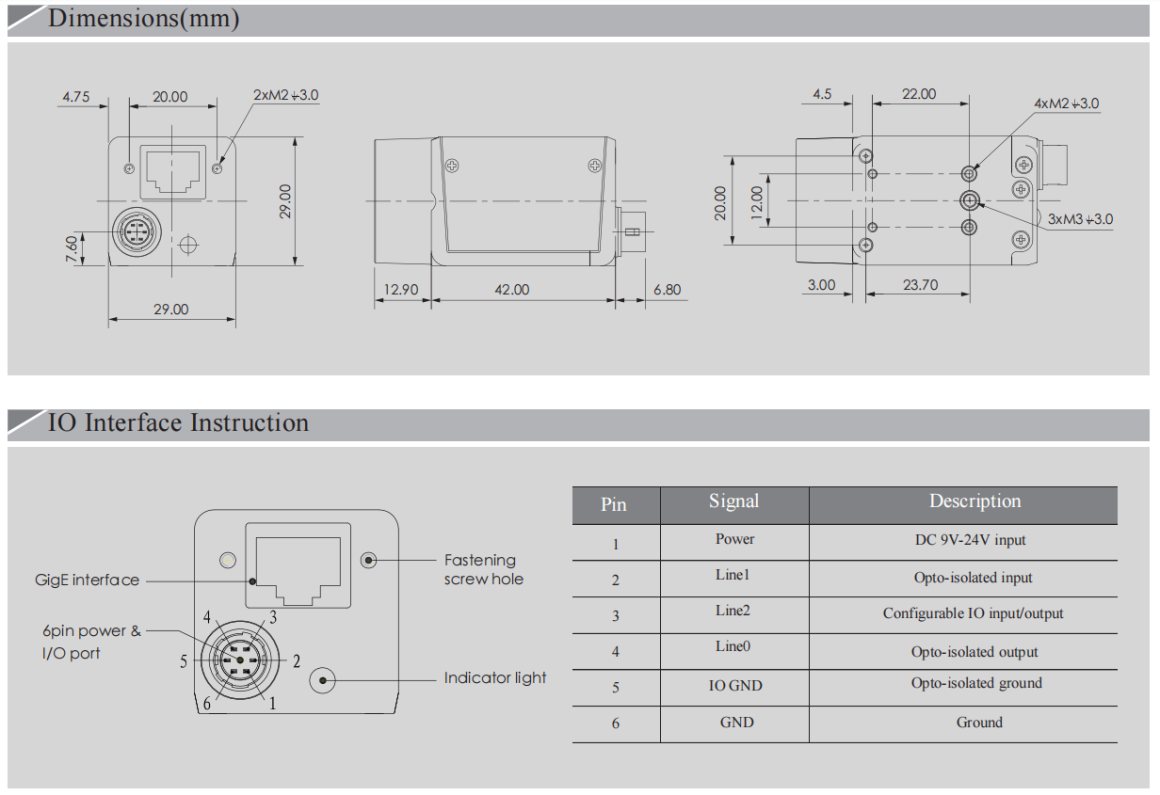

| Dimensions |
29mm×29mm×42mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
M |
