Camera & Optics

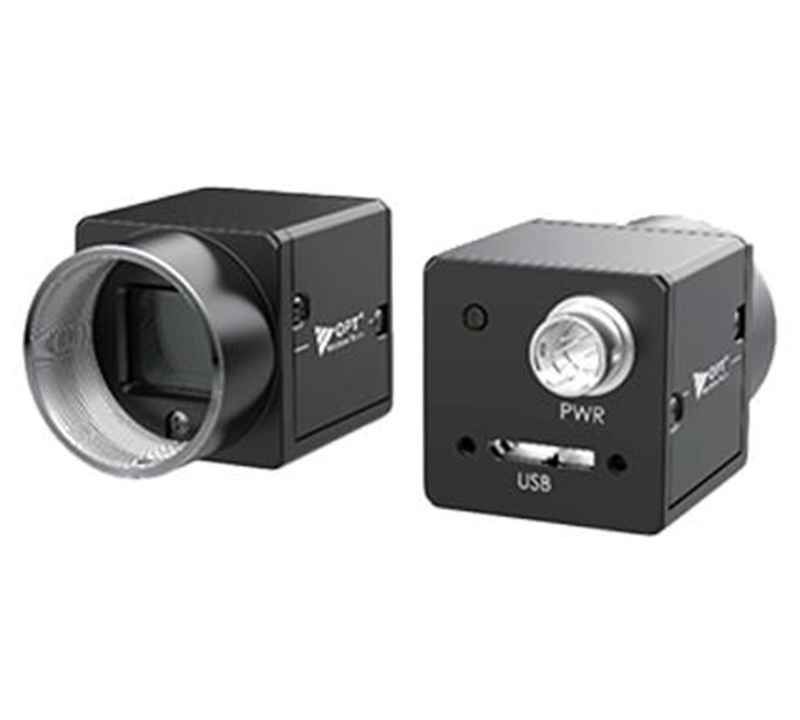

Industrial Global Shutter Cameras OPT-CM200-UM-0402
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
Features
| Model |
OPT-CM200-UM-0402 |
| Resolution |
1920×1200 |
| Pixel Size(μ㎡) |
5.86x5.86 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX174 |
| Frame Rate(FPS) |
164 |
| Sensor Format |
1/1.2" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
20μs-1s |
| Image Format |
Mono8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
＞70dB |
| Power Supply |
power supply via USB interface/ DC 9V~24V power supply via Hirose interface |
| Weight |
60g |
| Power Consumption（W） |
≈3.91W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

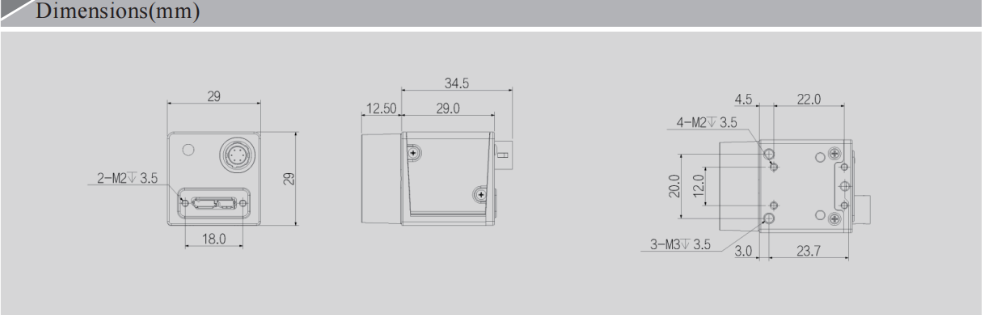

| Dimensions |
29mm×29mm×29mm |
| Conformity |
Compatible with USB3 Vision protocol and GenICam standard; |
| Mono/Color |
M |
