Industrial High Resolution C-Mount Cameras OPT-CC1-C200-UR1-02
- Adopts brand new design to reduce power consumption.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Provides high sensitivity, wide dynamic range, and low noise.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Features
| Model |
OPT-CC1-C200-UR1-02 |
| Resolution |
5472x3648 |
| Pixel Size(μ㎡) |
2.4 x 2.4 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX183 |
| Frame Rate(FPS) |
19.2 |
| Sensor Format |
1" |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
44 μs to 0.83 sec |
| Image Format |
Mono 8/10/12, Bayer GB 8/10/10Packed /12/12Packed ,YUV422_YUYV_Packed, YUV 422 Packed, RGB 8, BGR 8 |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
65.5 dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 80 g (0.18 lb.) |
| Power Consumption（W） |
Typ. 2.6 W@5 VDC(USB3.0 provides power supply) |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0),opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |

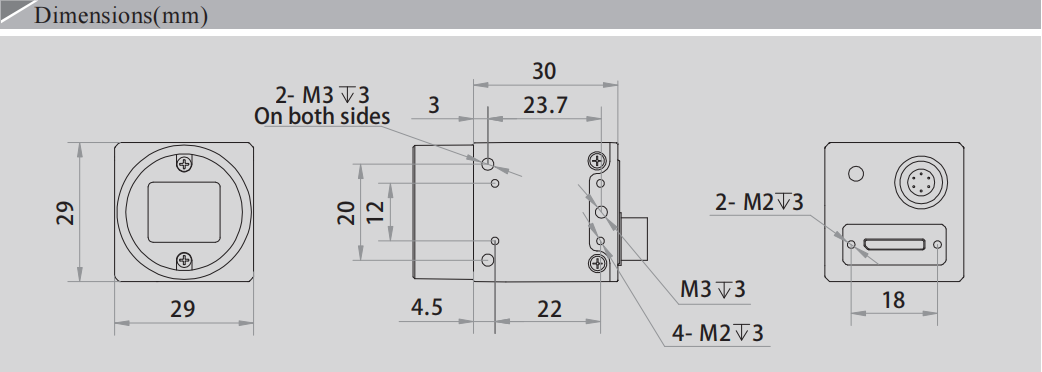

| Dimensions |
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
C |
