Camera & Optics

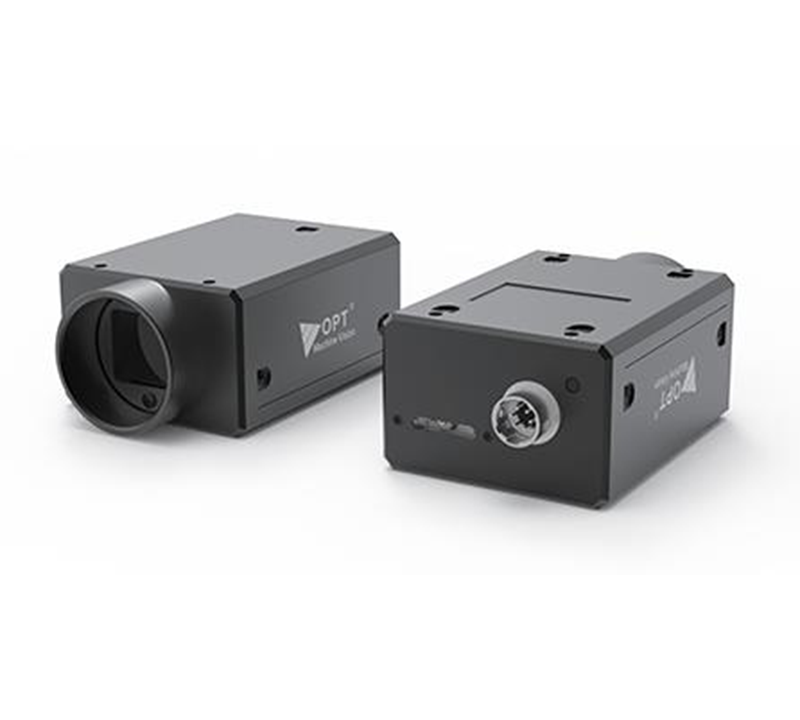

Industrial High Resolution C-Mount Cameras OPT-CC1-C250-UG3-01
- Resolution of 5120 × 5120, and pixel size of 2.5 µm × 2.5 µm.
- Supports lens shading correction, binning, image reverse, etc.
- Supports hardware trigger, software trigger, and free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
- Meet the CE，FCC，RoHS，KC certification.
Features
| Model |
OPT-CC1-C250-UG3-01 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
2.5x2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX0505 |
| Frame Rate(FPS) |
14.3 |
| Sensor Format |
1.1" |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
12 μs to 10 sec |
| Image Format |
Mono 8/10/12, Bayer GR 8/10/10p/12/12p YUV 422 Packed, YUV422_YUYV_Packed, RGB 8 |
| Gain(dB) |
Supports 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 × |
| Dynamic Range(dB) |
65 dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 100g (0.22 lb.) |
| Power Consumption（W） |
Typ. 4.0 W@5 VDC(USB3.0 provides power supply) |
| Temperature |
Storage temperature：-30℃~ + 70℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

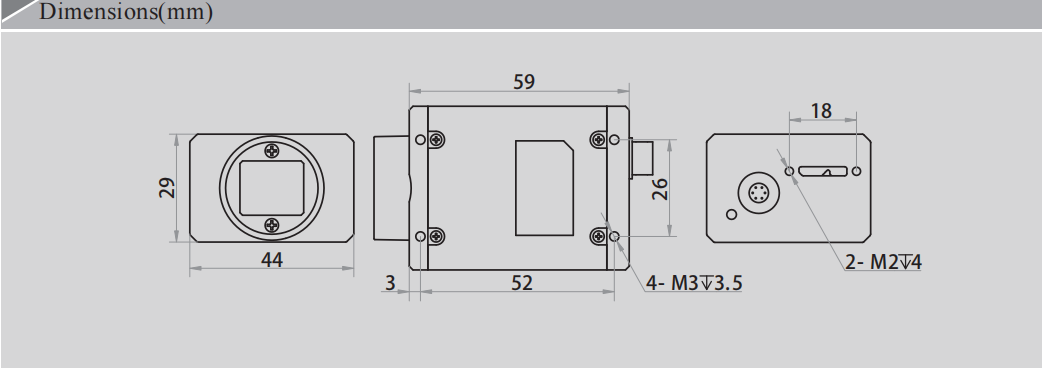

| Dimensions |
29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Mono/Color |
C |
