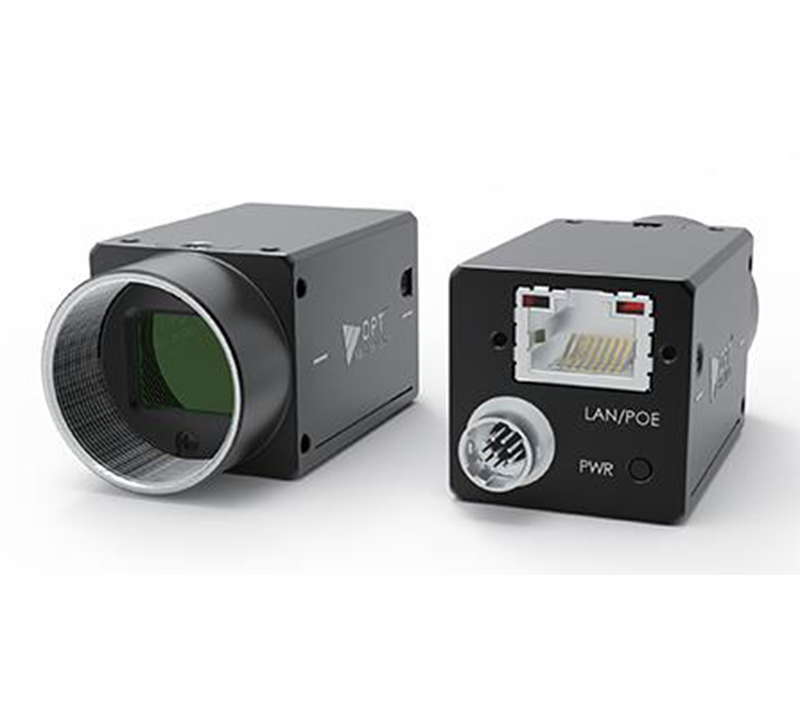

Industrial High Resolution C-Mount Cameras OPT-CC1-M120-GG0-01
- Supports auto or manual adjustment for gain and exposure time,and manual adjustment for LUT and Gamma correction.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Meet the CE, FCC,RoHS, KC certification.
Features
| Model |
OPT-CC1-M120-GG0-01 |
| Resolution |
4096×3072 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
XGS12000 |
| Frame Rate(FPS) |
9.6 |
| Sensor Format |
1" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode:52 μs to 161 μs; Standard exposure mode:162 μs to 10 sec |
| Gain(dB) |
0 dB to 18 dB |
| Dynamic Range(dB) |
66.4 dB |
| Power Supply |
9 VDC to 24 VDC ,supports PoE |
| Weight |
Approx. 100g (0.2 lb.) |
| Power Consumption（W） |
Typ. 3.2 W@12 VDC |
| Temperature |
Storage temperature：-30℃~ + 70℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |

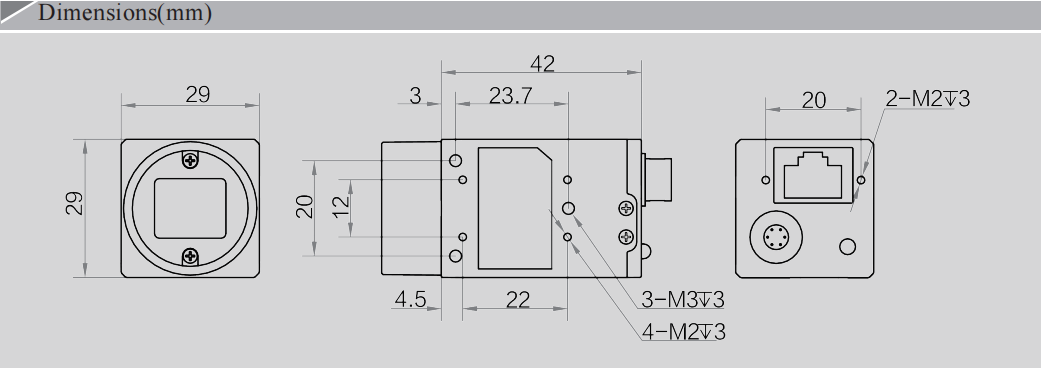

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Mono/Color |
M |
