Industrial High Resolution C-Mount Cameras OPT-CC1200-GL-04
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Binning/Mirror,etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard.
- Support PoE power supply, DC 9V~24V wide voltage power supply.
Features
| Model |
OPT-CC1200-GL-04 |
| Resolution |
4000×3000 |
| Pixel Size(μ㎡) |
1.85x1.85 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX226 |
| Frame Rate(FPS) |
9 |
| Sensor Format |
1/1.7" |
| Interface |
GigE PoE |
| Lens Mount |
C-Mount |
| Exposure Time |
143μs~1s |
| Image Format |
Mono8, BayerRG8/10/10Packed, BayerGB8/10/10Packed, YUV422Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
PoE/ DC 9V~24V power supply via Hirose interface |
| Weight |
88g |
| Power Consumption（W） |
12V≈3.4W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output |

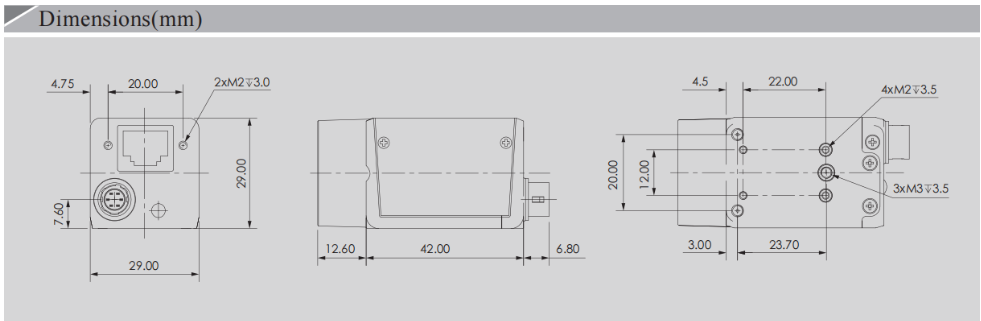

| Dimensions |
29mm×29mm×42mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
C |
