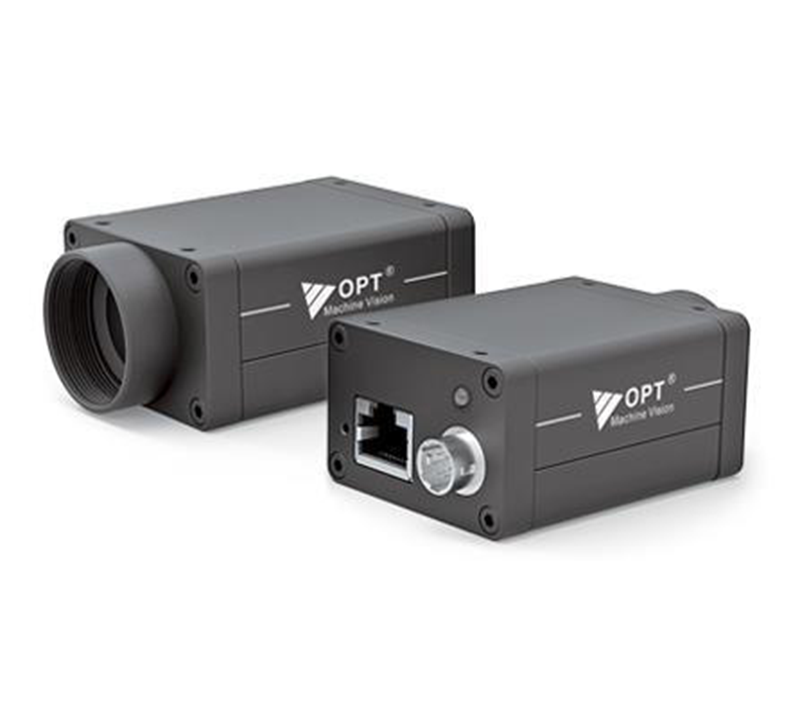

Industrial High Resolution C-Mount Cameras OPT-CC1200-GM-04
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Color cameras support interpolation, white balance, color.
- conversion matrix, chroma, saturation, etc.
- Support multiple image data formats output/ROI/Mirror, etc.
Features
| Model |
OPT-CC1200-GM-04 |
| Resolution |
4096×3000 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX304 |
| Frame Rate(FPS) |
9 |
| Sensor Format |
1.1" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
48μs~1s |
| Image Format |
Mono8，BayerRG8/10/10Packed,BayerGB8/10/10Packed， YUV422Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
＞70dB |
| Power Supply |
PoE/ DC 9V~24V power supply via Hirose interface |
| Weight |
100g |
| Power Consumption（W） |
12V≈3.2W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
1×6 pin Hirose: 1×Opto-isolated input, 1× Opto-isolated output |

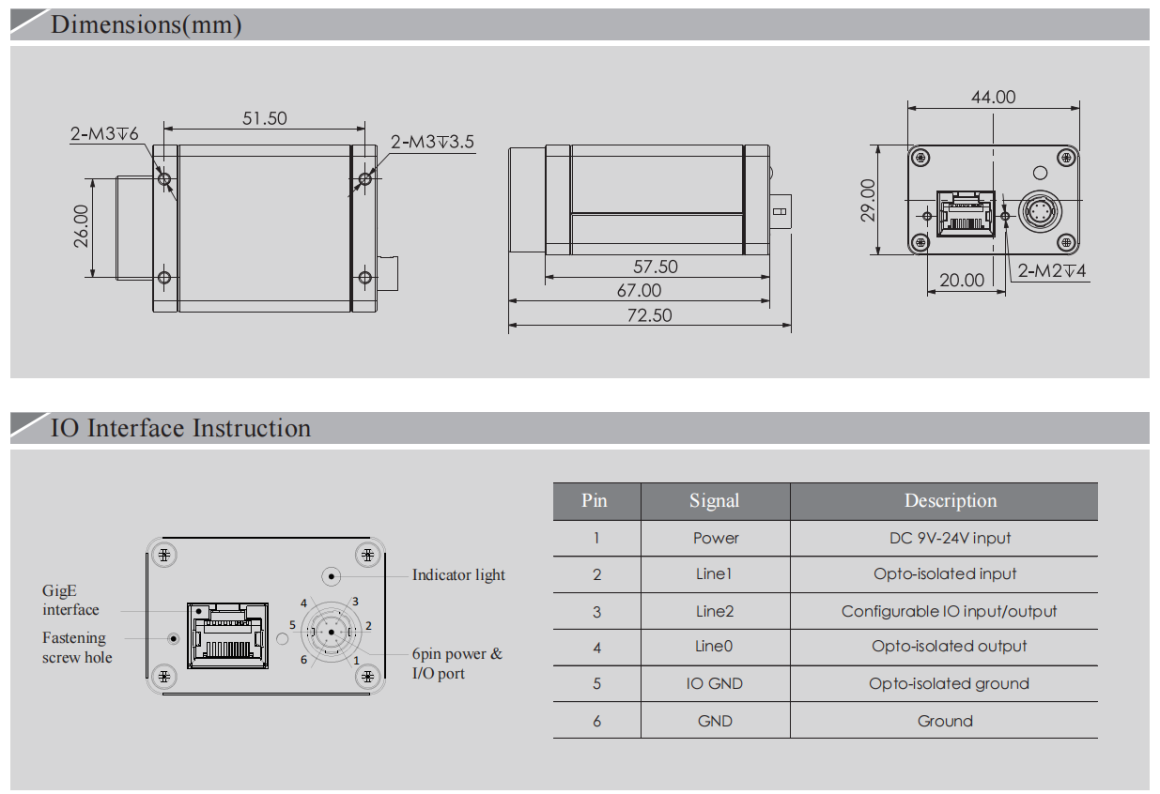

| Dimensions |
29mm×44mm×58mm |
| Conformity |
GigE Vision V2.0 and GenlCam; |
| Mono/Color |
C |
