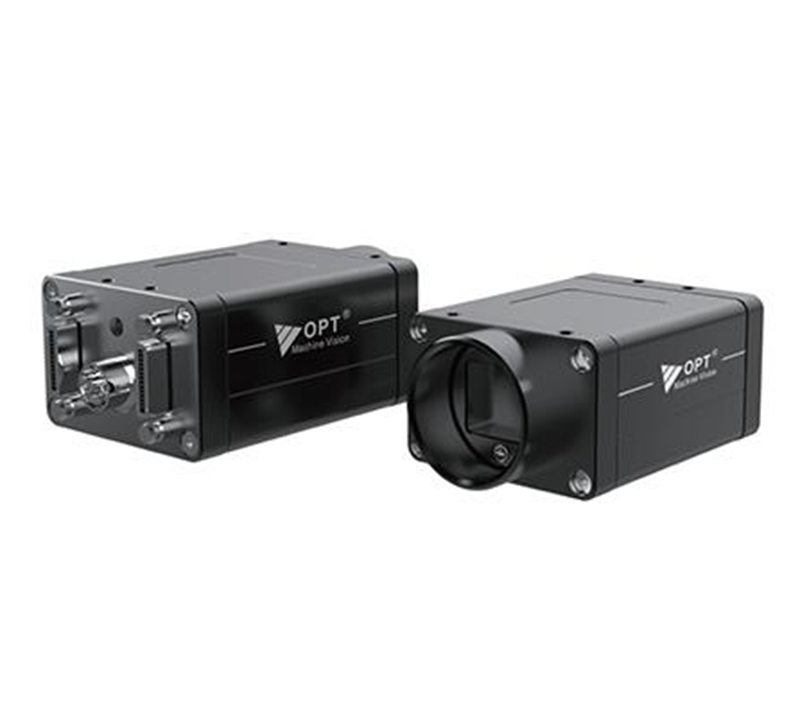

Industrial High Resolution C-Mount Cameras OPT-CC1200-LM-16
- Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image. Supports configuration modes of Base, Medium.
- Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
- Compatible with Camera Link V2.0 Protocol, GenICam Standard, and the third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CC1200-LM-16 |
| Resolution |
3840×3000 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX253 |
| Frame Rate(FPS) |
68.1 |
| Sensor Format |
1.1" |
| Interface |
Camera Link （SDR） |
| Lens Mount |
C |
| Exposure Time |
1 μs to 10 sec |
| Image Format |
Bayer RG 8/10/12，RGB 8 |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
71.6 dB |
| Power Supply |
Typ. 4.5 W@12 VDC |
| Weight |
Approx. 100g (0.2 lb.) |
| Power Consumption（W） |
Typ. 4.51 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

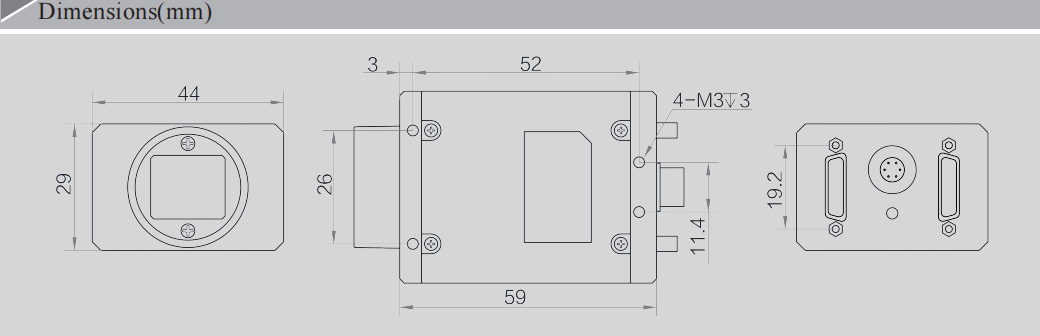

| Dimensions |
44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Mono/Color |
C |
