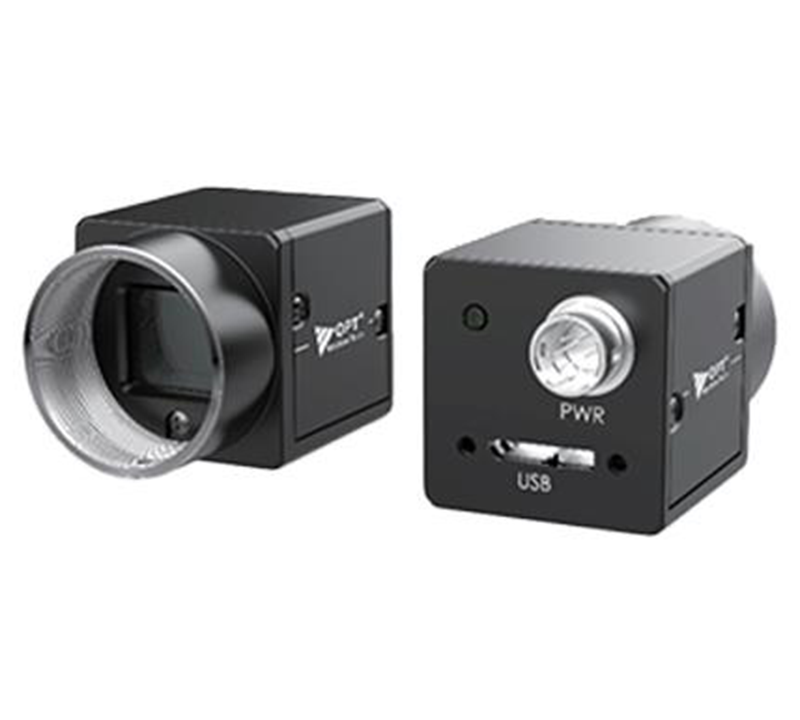

Industrial High Resolution C-Mount Cameras OPT-CC1200-UM-1601
- Supports auto or manual adjustment for gain and exposure time, and manual adjustment for LUT and Gamma correction.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports hardware trigger, software trigger and free run mode.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Conform CE, FCC, RoHS,KC certifications
Features
| Model | OPT-CC1200-UM-1601 |
|---|---|
| Resolution | 4096×3072 |
| Pixel Size(μ㎡) | 3.2x3.2 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | XGS12000 |
| Frame Rate(FPS) | 28 |
| Sensor Format | 1" |
| Interface | USB3.0 |
| Lens Mount | C |
| Exposure Time | UltraShort exposure mode: 10 μs to 158 μs Standard exposure mode: 159 μs to 10 sec |
| Image Format | Mono 8/10/12 Bayer RG 8/10/10Packed/12/12 Packed YUV422Packedd, YUV422_YUYV_Packed, RGB 8，BGR |
| Gain(dB) | 0 dB ~ 18 dB |
| Dynamic Range(dB) | 68 dB |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight | Approx. 80 g (0.2 lb.) |
| Power Consumption（W） | Typ. 3.2 W@5 VDC (USB3.0 provides power supply) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Dimensions | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color | C |
