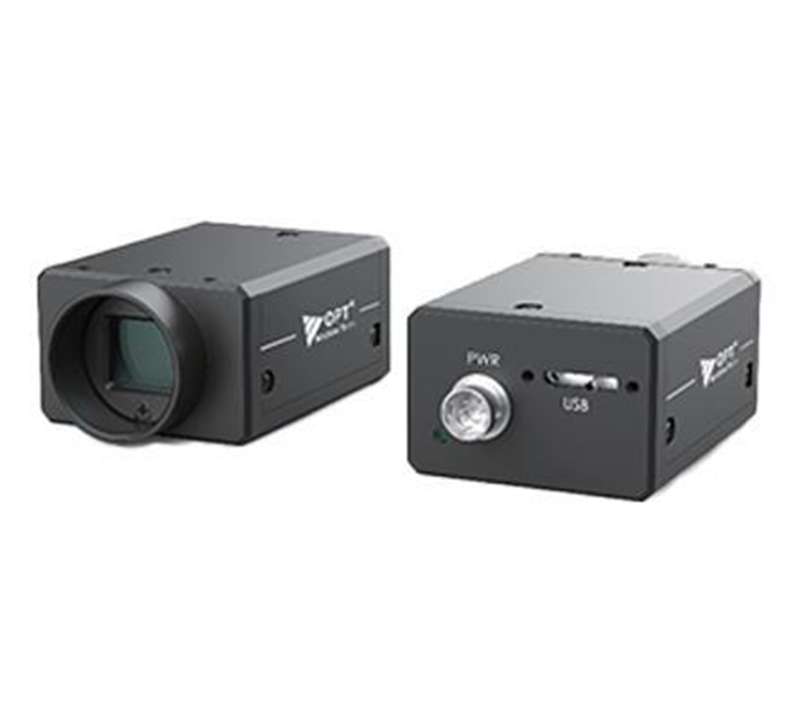

Industrial High Resolution C-Mount Cameras OPT-CC890-UM-16
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction,etc.
- Supports hardware triggering, software friggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Coincidence CE, FCC, RoHS,KC Certification
Features
| Model |
OPT-CC890-UM-16 |
| Resolution |
4096×2160 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX267 |
| Frame Rate(FPS) |
32 |
| Sensor Format |
1" |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Image Format |
Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8，BGR 8 |
| Gain(dB) |
0dB to 20 dB |
| Dynamic Range(dB) |
72.5 dB |
| Power Supply |
12 VDC, supports USB 3.0 power supply |
| Weight |
Approx. 100 g (0.2 Ib.) |
| Power Consumption（W） |
Typ.3.27 W@5 VDC (USB3.0 provides power supply) |
| Temperature |
Workingtemperature:0°C to 50°C(32°Fto 122°F)Storage temperature:-30°C to70°C (-22"Fto 158°F） |
| GPIO |
6-pin Hirose connector provides power andI/O,including opto-isolated input × 1(Line 0), opto-isolated output ×1(Line 1),bi-directionalnon-isolated I/O×1(Line 2). |

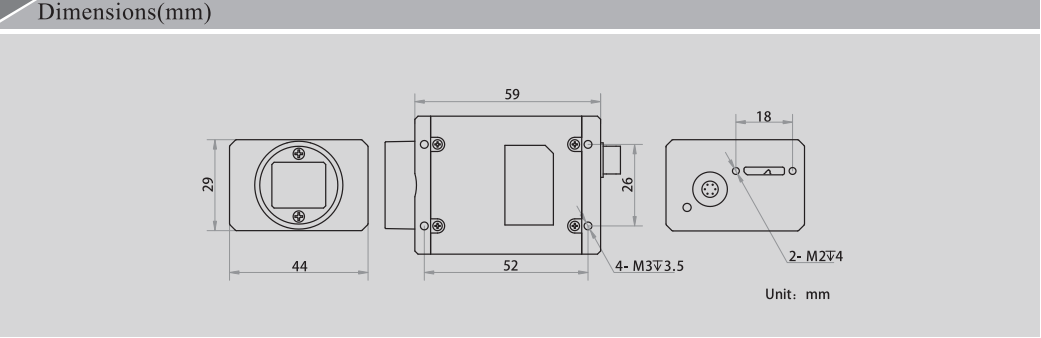

| Dimensions |
44mm ×29 mm ×59 mm (1.7"×1.1"× 2.3") |
| Mono/Color |
C |
