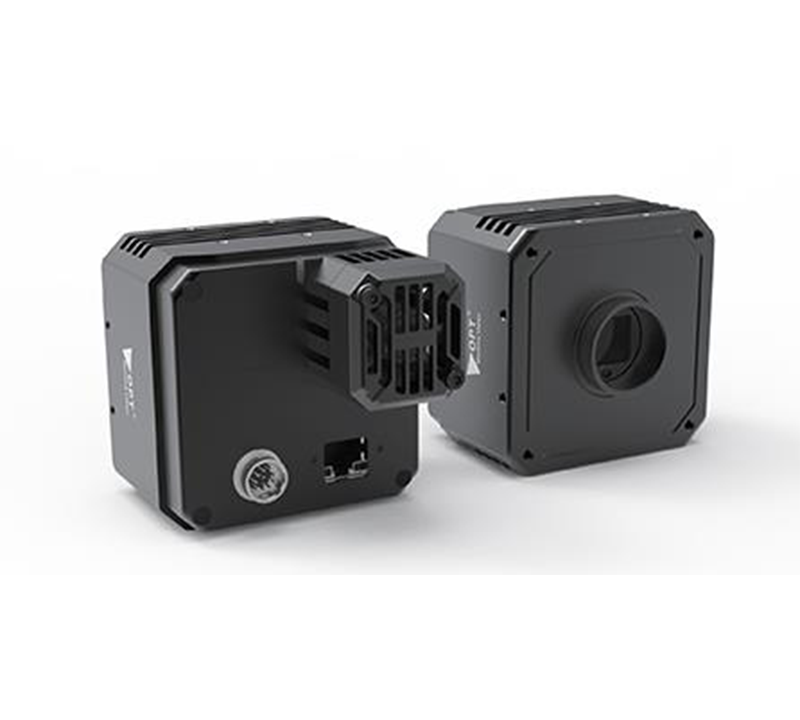

Industrial High Resolution C-Mount Cameras OPT-CD1-C250-XGG3-02
- Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
- Supports adjustment for exposure time, gain,Look-Up Table (LUT), Gamma correction, etc.
- MMounting holes on panels for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CD1-C250-XGG3-02 |
|---|---|
| Resolution | 5120×5120 |
| Pixel Size(μ㎡) | 2.5x2.5 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | GMAX0505 |
| Frame Rate(FPS) | 41.5 |
| Sensor Format | 1.1" |
| Interface | 10 GigE |
| Lens Mount | C-mount, optical back focal length 17.52 mm (0.7") |
| Exposure Time | 13 μs to 10 sec |
| Image Format | Mono 8/10/12, Bayer BG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Gain(dB) | 2.0x to 5.0x |
| Dynamic Range(dB) | 63 dB |
| Power Supply | 9 VDC to 24 VDC |
| Weight | C-mount camera: approx. 590g (1.3 lb.) |
| Power Consumption（W） | Typ. 10.0 W@12 VDC |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Dimensions | 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Mono/Color | C |
