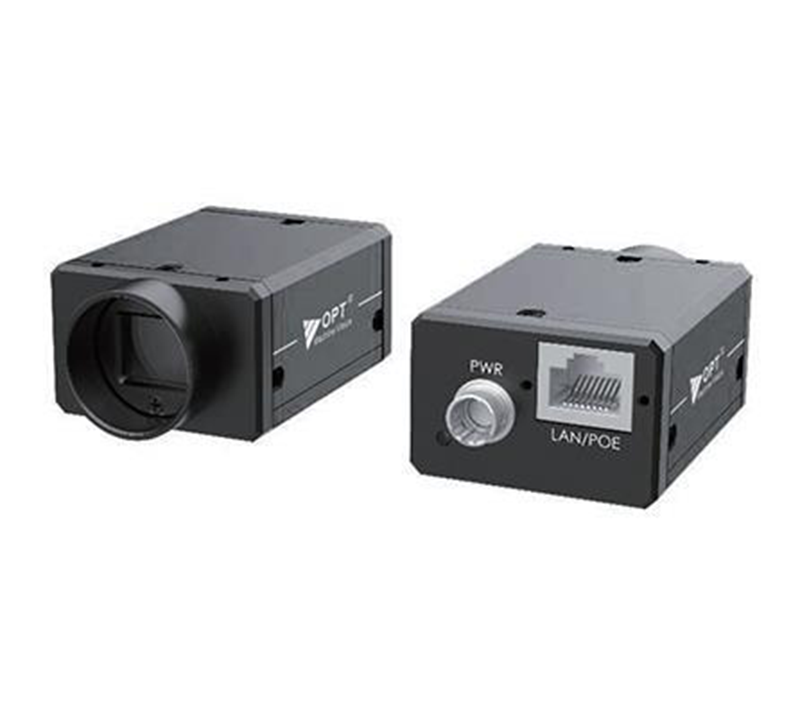

Industrial High Resolution C-Mount Cameras OPT-CM1200-GM-16
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
- Up to 128 MB local memory for burst transmission and retransmission.
- Supports hardware trigger, software trigger, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification
Features
| Model |
OPT-CM1200-GM-16 |
| Resolution |
4096×3000 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX304 |
| Frame Rate(FPS) |
9.4 |
| Sensor Format |
1.1" |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
UltraShort exposure mode: 1 μs to 14 μs Normal exposure mode: 15 μs to 10 sec |
| Image Format |
Mono 8/10/10p/12/12p |
| Gain(dB) |
0 dB ~ 20 dB |
| Dynamic Range(dB) |
72.2 dB |
| Power Supply |
12 VDC, supports PoE |
| Weight |
< 100 g (0.2 lb.) |
| Power Consumption（W） |
Typ. 4.3 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

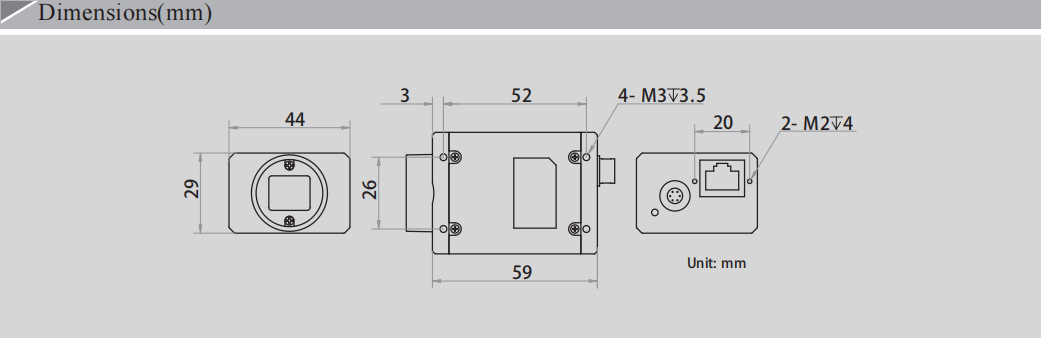

| Dimensions |
44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Mono/Color |
M |
