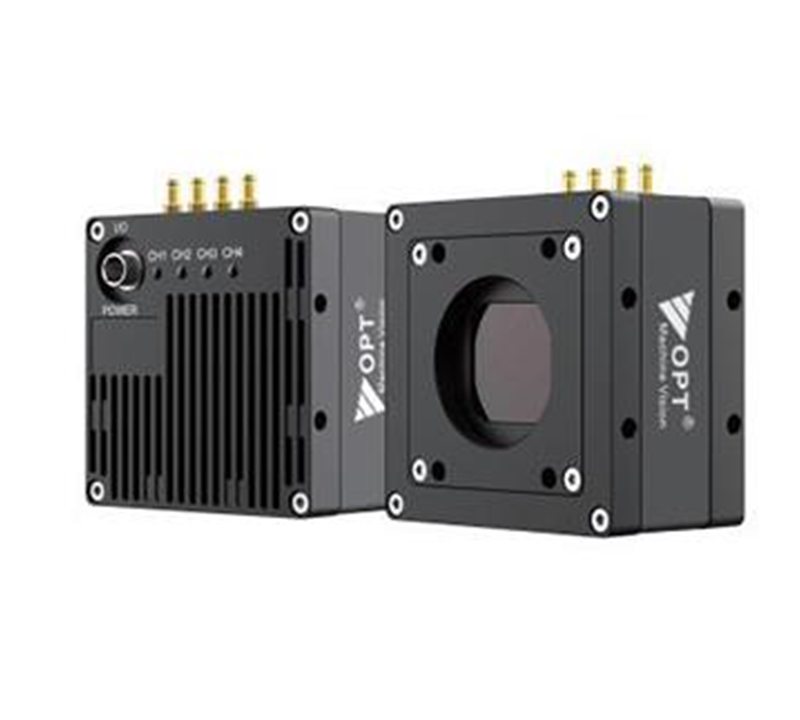

Industrial High Resolution Large Format Cameras OPT-CC1200-XM-04
- CoaxPress uses CXP—6，the theoretcal bandwith 4*6.25Gbps.
- Support multiple trigger modes such as external trigger/free run.
- Support FFC.
- Support a vartety of image adta format output,ROI and other functions.
- Compatible with the CoaxPress protocol and GenlCam standards.
- Support for PoCXP power supply and 24V external power supply.
- Compliance with Ce,FCC and RoHS certification.
Features
| Model |
OPT-CC1200-XM-04 |
| Resolution |
4096×3072 |
| Pixel Size(μ㎡) |
5.5x5.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
CMV12000 |
| Frame Rate(FPS) |
188 |
| Sensor Format |
22.5mm×16.9mm |
| Interface |
CXP-6 |
| Lens Mount |
M42*1 |
| Exposure Time |
50μs~5s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
1~100 |
| Dynamic Range(dB) |
60dB |
| Power Supply |
Power supply via 6-core Hirose interface DC,voltage range DC 24V |
| Weight |
720g |
| Power Consumption（W） |
24V≈15W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6-core Hirose interface:3-road can configure the input and output interface |

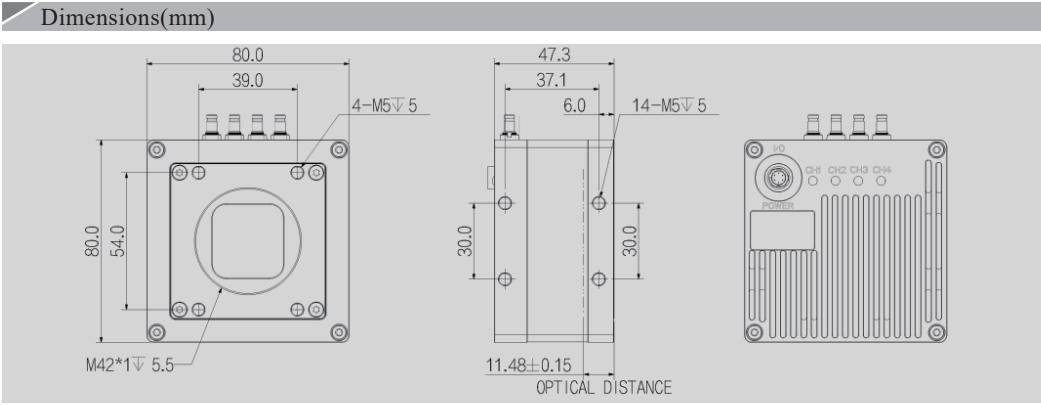

| Dimensions |
80mm×80mm×47mm |
| Conformity |
Compatible with the CoaxPress protocol and GenlCam standands |
| Mono/Color |
C |
