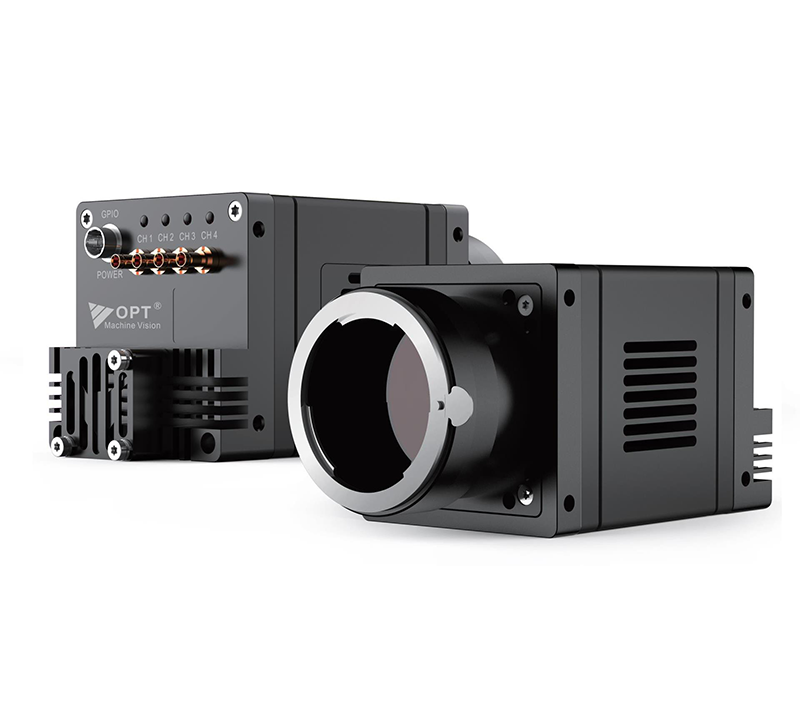

Industrial High Resolution Large Format Cameras OPT-CC1200-XM-0402
- CoaxPress uses CXP-6,the theoretical bandwidth 4*6.25Gbps.
- Support multiple trigger modes such as external trigger / free run.
- Support for edge enhancetion noise reduction,gamma correction,black level correction,black level correction,LUT and other ISP functions.
- Support a variety of image data format output,ROI and other functions.
- Compatible with the CoaxPress protocol and GenlCam standands.
- Support for PoCXP power supply and DC 24V external power supply.
- Compliance with CE,FCC and RoHS certification.
Features
| Model |
OPT-CC1200-XM-0402 |
| Resolution |
4096×3072 |
| Pixel Size(μ㎡) |
5.5x5.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
CMV12000 |
| Frame Rate(FPS) |
188 |
| Sensor Format |
22.5mm×16.9mm |
| Interface |
CXP-6 |
| Lens Mount |
F |
| Exposure Time |
50μs~5s |
| Image Format |
BayGR8/BayGR10/BayGR12/BayerRG8/BayerRG10 /BayerRG12/BayerGB8/BayerGB10/BayGB12/ BayBG8/BayerBG10/BayerBG12 |
| Gain(dB) |
1~100 |
| Dynamic Range(dB) |
60dB |
| Power Supply |
Supply via 6-core Hirose port DC with supply voltage DC 24V |
| Weight |
720g |
| Power Consumption（W） |
24V≈15W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6-core Hirose interface：3-road can configure the input and outpnt interface |

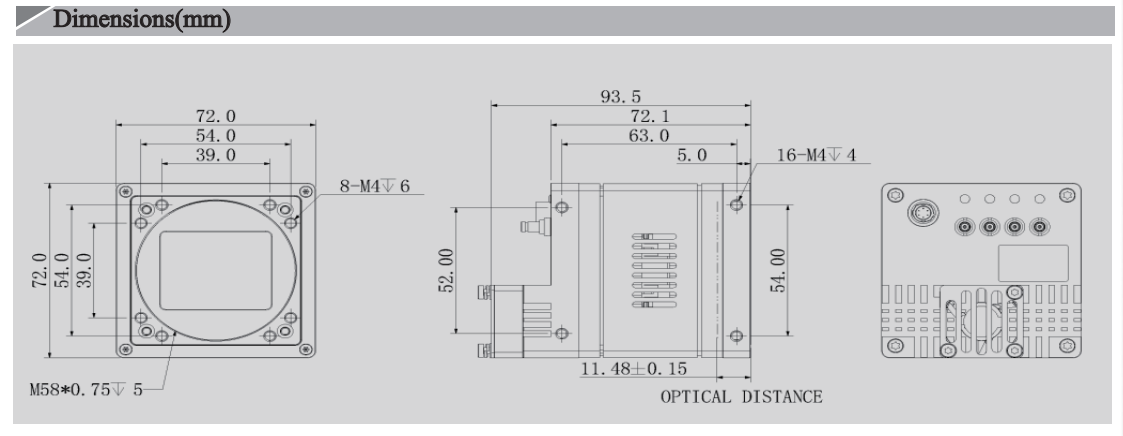

| Dimensions |
72mm×72mm×72mm |
| Conformity |
Compatible with the CoaxPress protocol and GenlCam standands |
| Mono/Color |
C |
