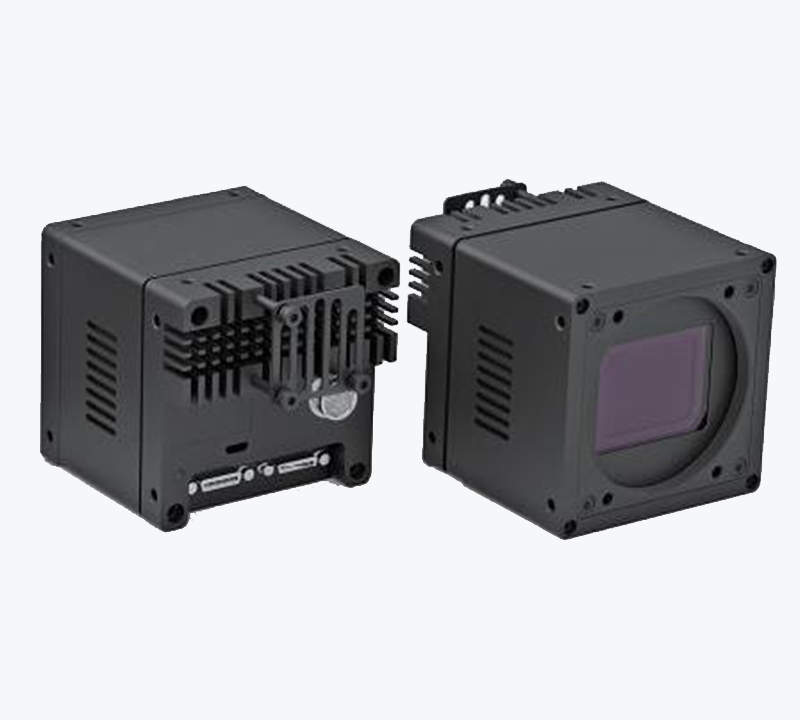

Industrial High Resolution Large Format Cameras OPT-CC5000-LM-04
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support to use Camera Link acquisition card to trigger the camera.
- Support custom ROI, vertical mirror.
- With 10TAP outputs, the frame rate of up to 12.5fps at 85M clock for 65MP and 17.5fps at 85M clock for 50MP.
- Support automatic exposure, Gamma, LUT, and other ISP function.
- Mono cameras support contrast adjustment.
Features
| Model |
OPT-CC5000-LM-04 |
| Resolution |
9280×4992 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
Customized |
| Frame Rate(FPS) |
17.5 |
| Sensor Format |
33.9mm |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M58X0.75 |
| Exposure Time |
16μs~15s |
| Image Format |
BayerGB8 |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
DC 24V power supply via 12 Hirose interface |
| Weight |
490g |
| Power Consumption（W） |
24V≈6.83W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12 pin Hirose: 3 x Opto-isolated input, 3 x Opto-isolated output, 1 x RS232 |

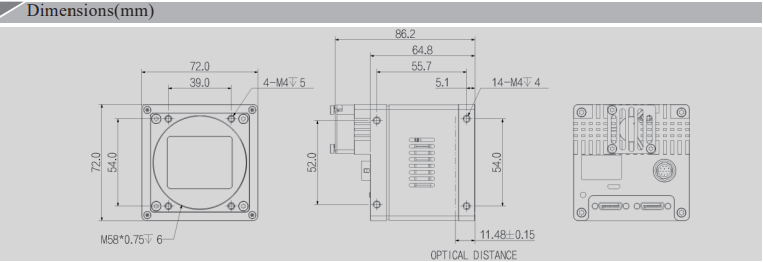

| Dimensions |
72mm×72mm×65mm |
| Conformity |
Compatible with Camera Link （SDR） V2.0 Protocol and GenICam standard; |
| Mono/Color |
C |
