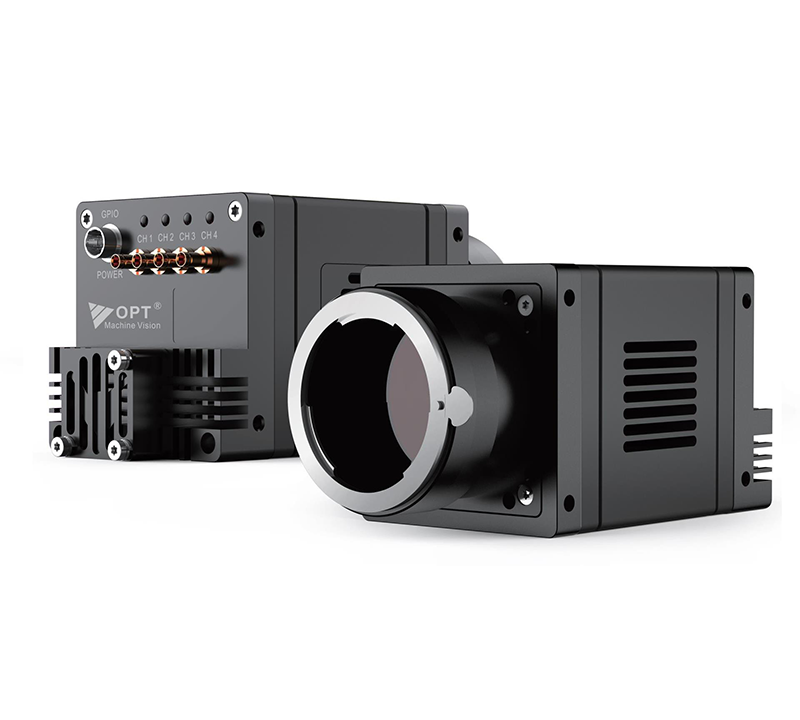

Industrial High Resolution Large Format Cameras OPT-CC5000-XM-0402
- CoaxPress uses CXP—6，the theoretcal bandwith 4*6.25Gbps.
- Support multiple trigger modes such as external trigger/free run.
- Support FFC.
- Support a vartety of image adta format output,ROI and other functions.
- Compatible with the CoaxPress protocol and GenlCam standards.
- Support for PoCXP power supply and 24V external power supply.
- Compliance with Ce,FCC and RoHS certification.
Features
| Model |
OPT-CC5000-XM-0402 |
| Resolution |
7920×6004 |
| Pixel Size(μ㎡) |
4.6x4.6 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
CMV50000 |
| Frame Rate(FPS) |
30 |
| Sensor Format |
36.4mm×27.6mm |
| Interface |
CXP-6 |
| Lens Mount |
F |
| Exposure Time |
50μs~5s |
| Image Format |
BayerBG8/10/12 |
| Gain(dB) |
1~100 |
| Dynamic Range(dB) |
64dB |
| Power Supply |
Power supply via 6-core Hirose interface DC,voltage range DC 24V |
| Weight |
720g |
| Power Consumption（W） |
24V≈15W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6-core Hirose interface:3-road can configure the input and output interface |

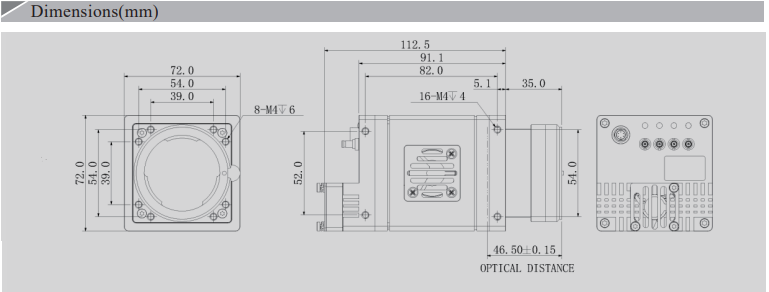

| Dimensions |
72mm×72mm×91.1mm |
| Conformity |
Compatible with the CoaxPress protocol and GenlCam standards |
| Mono/Color |
C |
