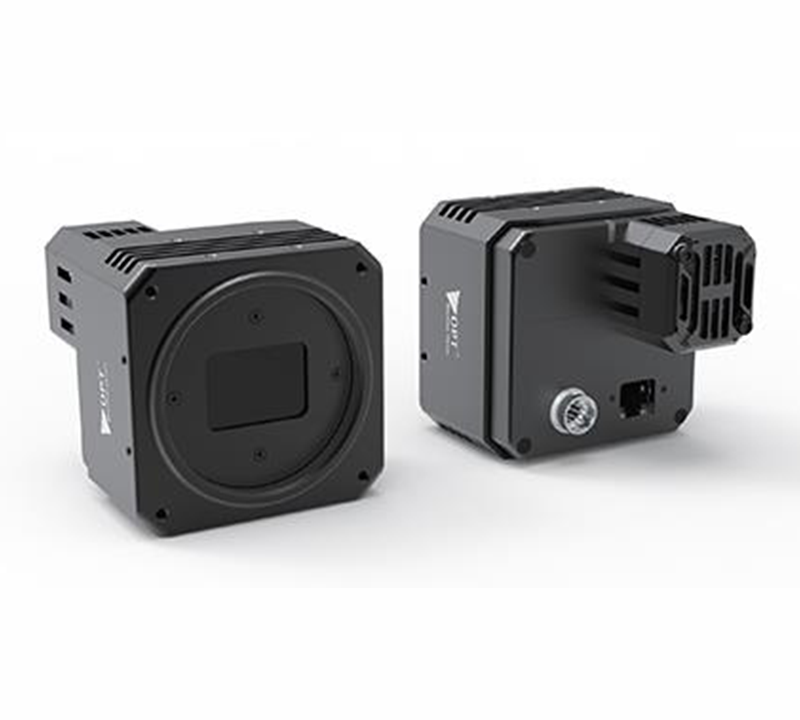

Industrial High Resolution Large Format Cameras OPT-CD1-C120-XGG1-01
- Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CD1-C120-XGG1-01 |
|---|---|
| Resolution | 4096×3000 |
| Pixel Size(μ㎡) | 3.45x3.45 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | IMX253 |
| Frame Rate(FPS) | 68.3 |
| Sensor Format | 1.1" |
| Interface | 10 GigE |
| Lens Mount | M58-mount, optical back focal length: 11.48 mm (0.5") |
| Exposure Time | UltraShort exposure mode: 2 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Image Format | Mono 8, Bayer RG 8, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Gain(dB) | 0 dB to 18 dB |
| Dynamic Range(dB) | 71.6 dB |
| Power Supply | 9 VDC to 24 VDC |
| Weight | Approx. 550g (1.2 lb) |
| Power Consumption（W） | Typ. 10.1 W@24 VDC |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Dimensions | 74 mm × 74 mm × 72.4 mm (2.9" × 2.9" × 2.9") |
| Mono/Color | C |
