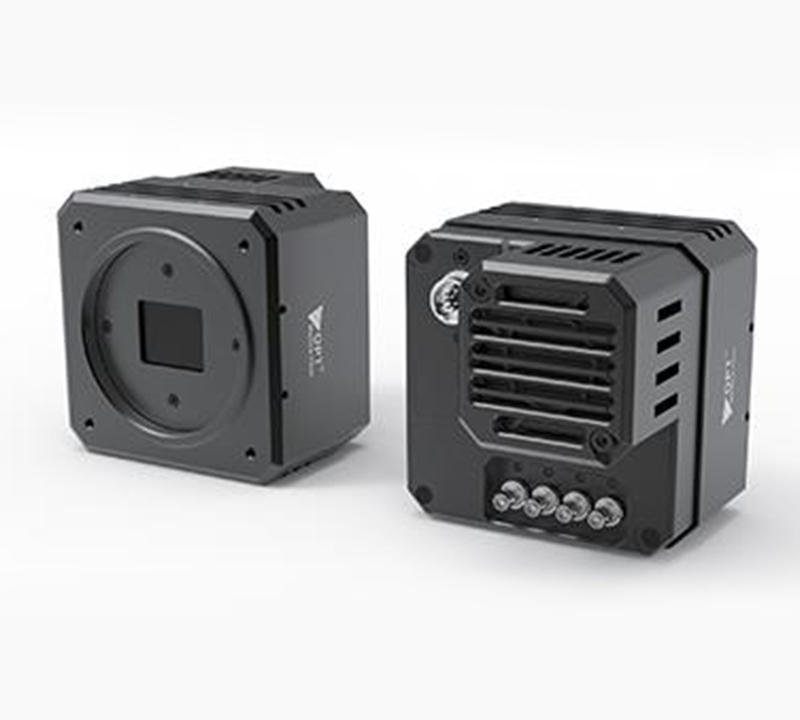

Industrial High Resolution Large Format Cameras OPT-CD1-C250-XG3-01
- Resolution of 5120 × 5120, and pixel size of 2.5 µm × 2.5 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Adopts CXP-12 interface to transmit data.
- Supports Off, Once, and Continuous exposure modes.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-C250-XG3-01 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
2.5x2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX0505 |
| Frame Rate(FPS) |
150 |
| Sensor Format |
1.1" |
| Interface |
CXP-12 |
| Lens Mount |
M58-mount, optical back focal length 11.48 mm (0.5") |
| Exposure Time |
13 μs to 10 sec |
| Image Format |
Bayer 8/10/12 |
| Gain(dB) |
2x to 5x |
| Dynamic Range(dB) |
63 dB |
| Power Supply |
12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP |
| Weight |
M58-mount with fan: approx.530g(1.2 Ib.) |
| Power Consumption（W） |
Typ. 13.7 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |

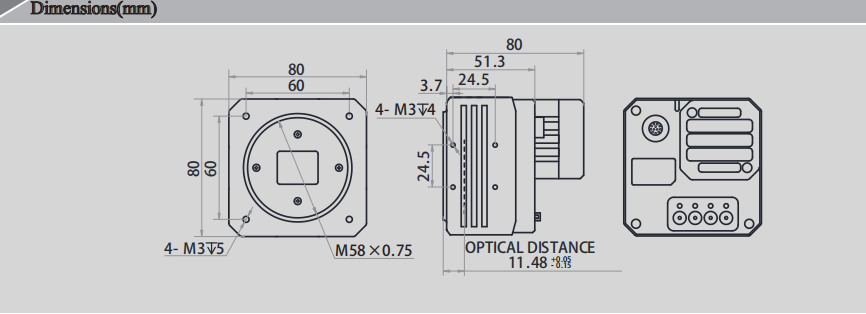

| Dimensions |
M58-mount with fan: 80 mm × 80 mm × 80 mm (3.1" × 3.1" × 3.1") |
| Mono/Color |
C |
