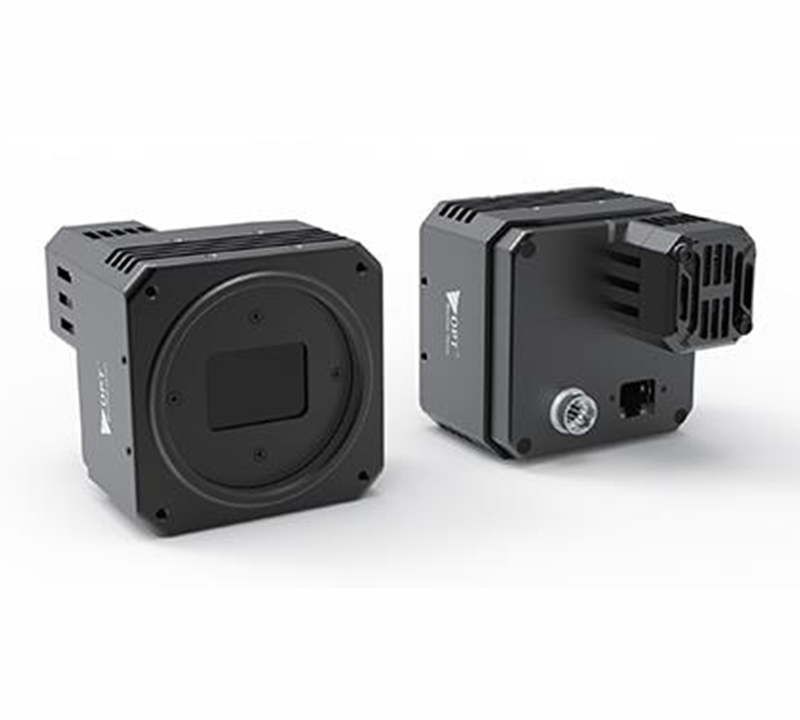

Industrial High Resolution Large Format Cameras OPT-CD1-C250-XGG3-01
- Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
- Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc.
- Standard, and third-party software based on protocols.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-C250-XGG3-01 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
2.5x2.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX0505 |
| Frame Rate(FPS) |
41.5 |
| Sensor Format |
1.1" |
| Interface |
10 GigE |
| Lens Mount |
M58-mount, optical back focal length 11.48 mm (0.5") |
| Exposure Time |
13 μs to 10 sec |
| Image Format |
Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Gain(dB) |
2.0x to 5.0x |
| Dynamic Range(dB) |
63 dB |
| Power Supply |
9 VDC to 24 VDC |
| Weight |
M58-mount camera: approx. 550g (1.2 lb.) |
| Power Consumption（W） |
Typ. 10.0 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |

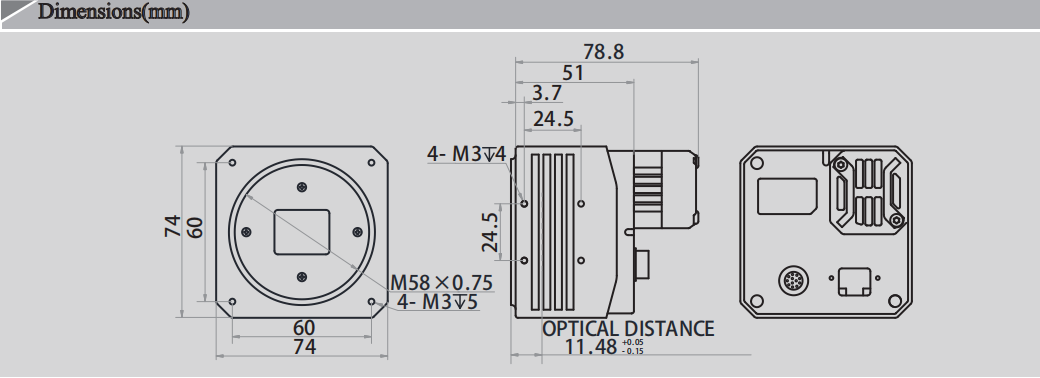

| Dimensions |
74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Mono/Color |
C |
