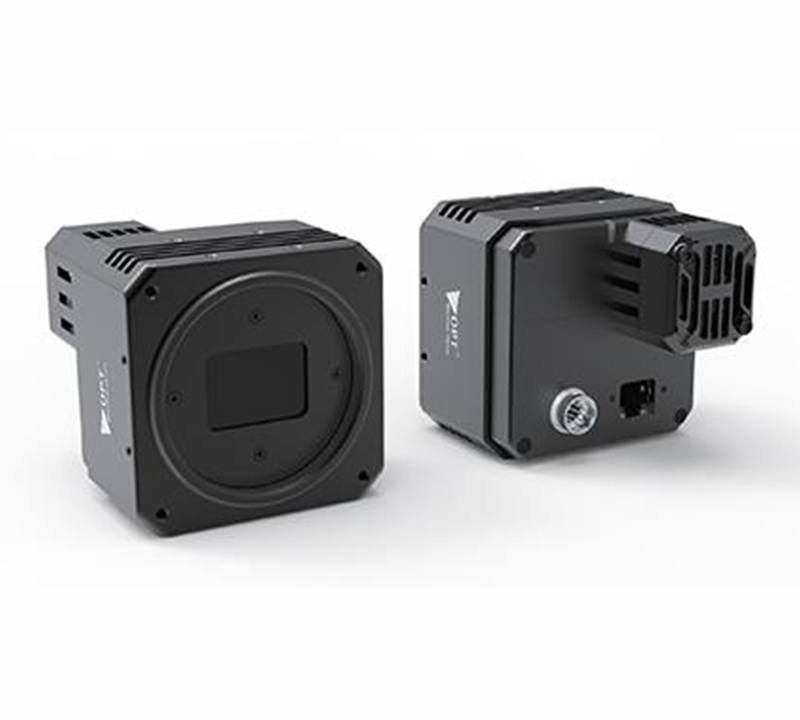

Industrial High Resolution Large Format Cameras OPT-CD1-C500-XGG3-01
- Resolution of 7008 × 7000, and pixel size of 3.2 μm × 3.2 μm.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model | OPT-CD1-C500-XGG3-01 |
|---|---|
| Resolution | 7008x7000 |
| Pixel Size(μ㎡) | 3.2x3.2 |
| Sensor Type | CMOS Global |
| Shutter | Global |
| Sensor | GMAX |
| Frame Rate(FPS) | 15.5 |
| Sensor Format | 22.4mm×22.4mm |
| Interface | 10 GigE |
| Lens Mount | M58-mount, flange back focal length: 11.48 mm (0.5") |
| Exposure Time | 15 μs to 10 sec |
| Image Format | Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Gain(dB) | 1.25 X to 6 X |
| Dynamic Range(dB) | 66 dB |
| Power Supply | 9 VDC to 24 VDC |
| Weight | Approx. 550g (1.2 lb) |
| Power Consumption（W） | Typ. 12 W@12 VDC |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO | 12-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), |
| Dimensions | 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Mono/Color | C |
